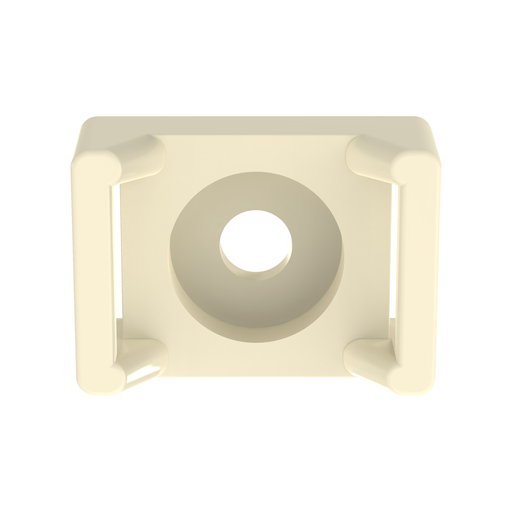

TM3S8-C69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.86x0.61", #8 Screw
MFG #TM3S8-C69
$1.34 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
Product Description:
Panduit's TM3S8-C69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, offering maximum stability for cable bundles. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #8 (M4) screw. These mounts are for indoor use and can be used with miniature, intermediate, standard and light heavy cable ties. They are .86" long x .61" wide (21.9mm x 15.5mm), ivory in color, and come in packages of 100.
HESCO Part Number
PANTM3S8C69
UPC
074983582655
Manufacturer Part Number
TM3S8-C69
Manufacturer
Panduit
TM3S8-C69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.86x0.61", #8 Screw
MFG #TM3S8-C69
Product Description:
Panduit's TM3S8-C69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, offering maximum stability for cable bundles. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #8 (M4) screw. These mounts are for indoor use and can be used with miniature, intermediate, standard and light heavy cable ties. They are .86" long x .61" wide (21.9mm x 15.5mm), ivory in color, and come in packages of 100.
HESCO Part Number
PANTM3S8C69
UPC
074983582655
Manufacturer Part Number
TM3S8-C69
Manufacturer
Panduit
$1.34 / E
(Must order in increments of 500/E)
(Must order in increments of 500/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
- No
Packaging Details
UPC | : | 07498358265 |
GTIN Package | : | 00074983582655 |
Standard Package Volume Ft3 | : | 0.0370 |
Standard Package Weight Pounds | : | 0.4500 |
Std Package Height In | : | 1.65 |
Std Package Height MM | : | 41.91 |
Std Package Length In | : | 5.85 |
Std Package Length MM | : | 148.59 |
Std Package Width In | : | 5.75 |
Std Package Width MM | : | 146.05 |
Std. Pkg. UOM | : | Piece |
UOM EA PK | : | PK |
Std. Pkg. Qty. | : | 100 |
GTIN Carton | : | 50074983582650 |
Standard Carton Volume Ft3 | : | 0.1850 |
Standard Carton Weight Pounds | : | 2.2500 |
Std Carton Height In | : | 4.4 |
Std Carton Height MM | : | 111.76 |
Std Carton Length In | : | 10.25 |
Std Carton Length MM | : | 260.35 |
Std Carton Width In | : | 6.25 |
Std Carton Width MM | : | 158.75 |
Std Ctn Qty | : | 500 |
Min. Order UOM | : | Piece |
EAN | : | 00074983582655 |
REACH Status | : | N |
California Pro65 Cancer | : | No |
ARRA Compliant | : | Y |
Mercury Content Indicator | : | N |
Hazardous Material Flag | : | N |
Min Order Qty | : | 500.0000 |
Pallet Quantity | : | 159,500 |
Pallet Volume | : | 59.008598 |
Pallet Weight | : | 717.7500 |
RoHS Compliant | : | Compliant |
Specifications | ||
Country of Origin | : | United States |
Any Reason Not to Sell | : | N |
Product Segment | : | IEI |
Overall Length (In.) | : | 0.86 |
Overall Height (In.) | : | 0.37 |
Resistance Properties | : | Flame-Retardant |
Overall Length (mm) | : | 21.9 |
Maximum Operating Temperature (°F) | : | 212 |
Color | : | Ivory |
Product Type | : | Cable Tie Mount |
Minimum Operating Temperature (°C) | : | -60 |
For Use With | : | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
Application | : | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
Minimum Operating Temperature (°F) | : | -76 |
Mount Method | : | Screw-On |
Environment | : | Indoor |
Overall Width (mm) | : | 50.3 |
Overall Width (In.) | : | 0.61 |
Material | : | Nylon 6.6 |
Maximum Operating Temperature (°C) | : | 100 |
Overall Height (mm) | : | 9.4 |
Mounting Hole Thread Size | : | #8 |
Material Description | : | Nylon 6.6 (Flame-Retardant) |
