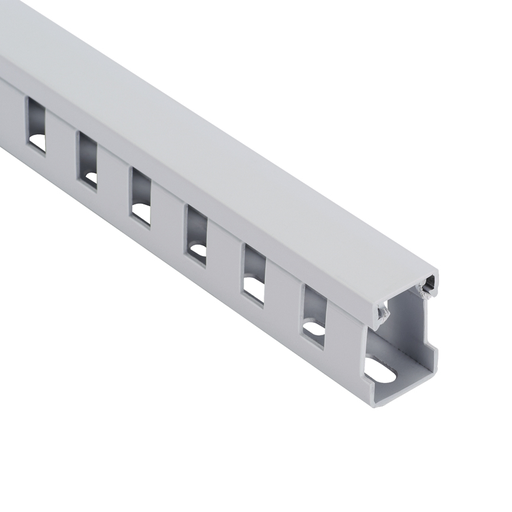

Panduct® TNC100X50LG2 Base/Cover
MFG #TNC100X50LG2
$111.22 / MR
(Must order in increments of 10/MR)
(Must order in increments of 10/MR)
Product Description:
Type TNC slotted wall wiring duct, 99.6mm W x 47.8mm H, 6.6' length, polyphenylene ether + high impact polystyrene (PPE + HIPS), light gray, base and cover packaged together.
HESCO Part Number
PANTNC100X50LG2
UPC
074983597826
Manufacturer Part Number
TNC100X50LG2
Manufacturer
Panduit
Panduct® TNC100X50LG2 Base/Cover
MFG #TNC100X50LG2
Product Description:
Type TNC slotted wall wiring duct, 99.6mm W x 47.8mm H, 6.6' length, polyphenylene ether + high impact polystyrene (PPE + HIPS), light gray, base and cover packaged together.
HESCO Part Number
PANTNC100X50LG2
UPC
074983597826
Manufacturer Part Number
TNC100X50LG2
Manufacturer
Panduit
$111.22 / MR
(Must order in increments of 10/MR)
(Must order in increments of 10/MR)
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant, UL Recognized, CE Compliant, DIN 43659, DIN 5510-2 & DIN 54837 Compliant, EN45545-2 HL1, HL2 & HL3 Compliant, NFPA 120 Compliant, BABA Compliant
Packaging Details
| UPC | : | 07498359782 |
| GTIN Package | : | 00074983597826 |
| Standard Package Volume Ft3 | : | 0.3242 |
| Standard Package Weight Pounds | : | 3.0000 |
| Std Package Height In | : | 1.1 |
| Std Package Height MM | : | 27.94 |
| Std Package Length In | : | 78 |
| Std Package Length MM | : | 1981.2 |
| Std Package Width In | : | 6.6 |
| Std Package Width MM | : | 167.64 |
| Std. Pkg. UOM | : | Meters |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 2 |
| GTIN Carton | : | 50074983597821 |
| Standard Carton Volume Ft3 | : | 1.6209 |
| Standard Carton Weight Pounds | : | 15.0000 |
| Std Carton Height In | : | 2.7 |
| Std Carton Height MM | : | 68.58 |
| Std Carton Length In | : | 79.8 |
| Std Carton Length MM | : | 2026.92 |
| Std Carton Width In | : | 13 |
| Std Carton Width MM | : | 330.2 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Meters |
| EAN | : | 00074983597826 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 390 |
| Pallet Volume | : | 63.216563 |
| Pallet Weight | : | 585.0000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Slot Width (In.) | : | 0.39 |
| Overall Height (In.) | : | 1.88 |
| Flammability Rating | : | UL94 V-0 |
| Sub Brand | : | Panduct® |
| Color | : | Light Gray |
| Mount Method | : | DIN Standard Mounting Holes |
| Application | : | (1) Type TNC Wiring Duct Routes, Protects, and Manages Electrical and Communication Cabling in Control Panels and Wire Routing Applications that Require Enhanced Material Performance for Fire Safety such as in Light Rail and Transit Systems, Commuter Buses, Data Centers, Offshore Oil and Gas Platforms, and other Environments |
| Includes | : | Cover |
| Overall Length (m) | : | 2 |
| Wiring Duct Style | : | Slotted Wall Wiring Duct |
| Product Type | : | Wiring Duct Base with Cover |
| Material | : | PPE/HIPS |
| Overall Width (In.) | : | 3.92 |
| Overall Width (mm) | : | 99.6 |
| Measurement System | : | Metric |
| Overall Height (mm) | : | 47.8 |
| Cover Part Number | : | TNC75LG2 (included) |
| Overall Length (ft.) | : | 6.6 |
| Slot Width (mm) | : | 10 |
| Wiring Duct Type | : | TNC |
| Duct Dimensions (In.) | : | 3.92W x 1.88H |
