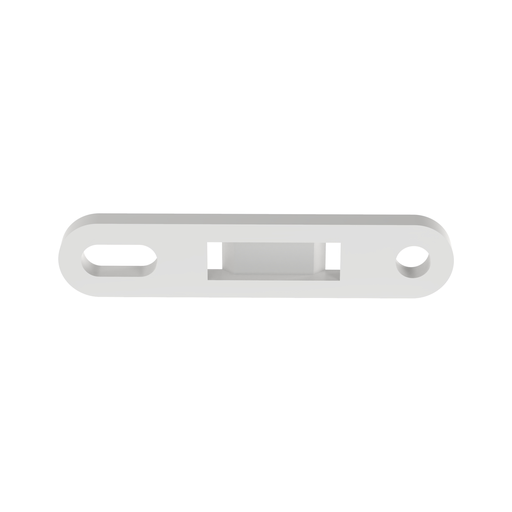

TP2-C Cable Tie Mount, Natural, PA 6.6, Screw, 1.98x0.5", PK100
MFG #TP2-C
$0.52 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit’s TP2-C Cable Tie Plates have slotted mounting holes to accommodate various fastener spacing. With their low profile design, bundles stay close to mounting surface making them ideal for areas where overhead space is limited. These mounts can be used with miniature through standard cable ties and with #6 (M3) screws. For indoor use only, made of Nylon 6.6, are natural in color and come in packages of 100.
HESCO Part Number
PANTP2C
UPC
074983583201
Manufacturer Part Number
TP2-C
Manufacturer
Panduit
TP2-C Cable Tie Mount, Natural, PA 6.6, Screw, 1.98x0.5", PK100
MFG #TP2-C
Product Description:
Panduit’s TP2-C Cable Tie Plates have slotted mounting holes to accommodate various fastener spacing. With their low profile design, bundles stay close to mounting surface making them ideal for areas where overhead space is limited. These mounts can be used with miniature through standard cable ties and with #6 (M3) screws. For indoor use only, made of Nylon 6.6, are natural in color and come in packages of 100.
HESCO Part Number
PANTP2C
UPC
074983583201
Manufacturer Part Number
TP2-C
Manufacturer
Panduit
$0.52 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: CE Compliant, UL Recognized:E136577, RoHS Compliant
- No
Specifications
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| For Use With | : | Miniature, Intermediate, Standard Cross-Section Ties |
| Minimum Operating Temperature (°F) | : | -76 |
| Overall Width (In.) | : | 0.5 |
| Overall Length (mm) | : | 50.3 |
| Overall Height (In.) | : | 0.13 |
| Material | : | Nylon 6.6 |
| Mounting Hole Thread Size | : | #10 |
| Overall Height (mm) | : | 3.2 |
| Color | : | Natural |
| Environment | : | Indoor |
| Overall Length (In.) | : | 1.98 |
| Application | : | Cable Tie Plate Used with Miniature, Intermediate, And Standard Cable Ties. |
| Product Type | : | Cable Tie Mount |
| Maximum Operating Temperature (°F) | : | 185 |
| Overall Width (mm) | : | 50.3 |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Operating Temperature (°C) | : | -60 |
| Mount Method | : | Screw-On |
Packaging Details | ||
| UPC | : | 07498358320 |
| GTIN Package | : | 00074983583201 |
| Standard Package Volume Ft3 | : | 0.0270 |
| Standard Package Weight Pounds | : | 0.4000 |
| Std Package Height In | : | 1.85 |
| Std Package Height MM | : | 46.99 |
| Std Package Length In | : | 5.8 |
| Std Package Length MM | : | 147.32 |
| Std Package Width In | : | 5.15 |
| Std Package Width MM | : | 130.81 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983583206 |
| Standard Carton Volume Ft3 | : | 0.2695 |
| Standard Carton Weight Pounds | : | 4.0000 |
| Std Carton Height In | : | 4.5 |
| Std Carton Height MM | : | 114.3 |
| Std Carton Length In | : | 10.35 |
| Std Carton Length MM | : | 262.89 |
| Std Carton Width In | : | 10.3 |
| Std Carton Width MM | : | 261.62 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983583201 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 160,000 |
| Pallet Volume | : | 43.121272 |
| Pallet Weight | : | 640.0000 |
| RoHS Compliant | : | Compliant |
