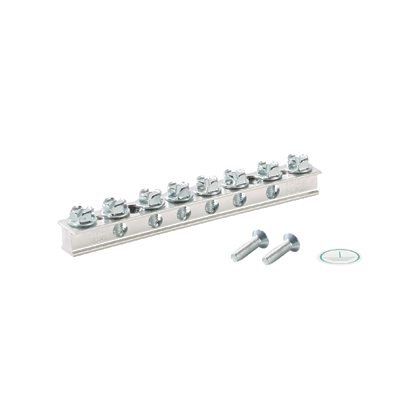

StructuredGround™ UGB2/0-414-6 Universal Grd Bar, Silver, Cu, Tin-Plated, 6" L
MFG #UGB2/0-414-6
$47.65 / E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
Product Description:
The UGB2/0-414-6 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 – #4 AWG wire in 6 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
HESCO Part Number
PANUGB204146
UPC
074983402229
Manufacturer Part Number
UGB2/0-414-6
Manufacturer
Panduit
StructuredGround™ UGB2/0-414-6 Universal Grd Bar, Silver, Cu, Tin-Plated, 6" L
MFG #UGB2/0-414-6
Product Description:
The UGB2/0-414-6 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 – #4 AWG wire in 6 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
HESCO Part Number
PANUGB204146
UPC
074983402229
Manufacturer Part Number
UGB2/0-414-6
Manufacturer
Panduit
$47.65 / E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: UL 467 and CSA certified 22.2 no.41
Packaging Details
| UPC | : | 07498340222 |
| GTIN Package | : | 00074983402229 |
| Standard Package Volume Ft3 | : | 0.0074 |
| Standard Package Weight Pounds | : | 0.2783 |
| Std Package Height In | : | .7 |
| Std Package Height MM | : | 17.78 |
| Std Package Length In | : | 5.65 |
| Std Package Length MM | : | 143.51 |
| Std Package Width In | : | 4 |
| Std Package Width MM | : | 101.6 |
| Std. Pkg. UOM | : | Kit |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983402224 |
| Standard Carton Volume Ft3 | : | 0.0741 |
| Standard Carton Weight Pounds | : | 2.7830 |
| Std Carton Height In | : | 3.45 |
| Std Carton Height MM | : | 87.63 |
| Std Carton Length In | : | 8.2 |
| Std Carton Length MM | : | 208.28 |
| Std Carton Width In | : | 4.35 |
| Std Carton Width MM | : | 110.49 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Kit |
| EAN | : | 00074983402229 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5.0000 |
| Pallet Quantity | : | 3,000 |
| Pallet Volume | : | 22.222222 |
| Pallet Weight | : | 834.9000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Mexico, United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Length (mm) | : | 125 |
| Mounting Hole Width (In.) | : | 2.37 |
| Product Type | : | Grounding Busbar |
| Material | : | Copper |
| Overall Length (In.) | : | 4.92 |
| Overall Width (In.) | : | 0.62 |
| Application | : | Control Panel |
| Mounting Hole Width (mm) | : | 2.4 |
| Color | : | Silver |
| Sub Brand | : | StructuredGround™ |
| Overall Width (mm) | : | 15.7 |
| Number of Ports | : | 6 |
| Overall Height (mm) | : | 12.2 |
| Overall Height (In.) | : | 0.48 |
| Finish/Coating | : | Tin-Plated |
| Compatible Wire Gauge | : | 4 AWG |
| Compatible Conductor Size | : | 14-4 AWG |
