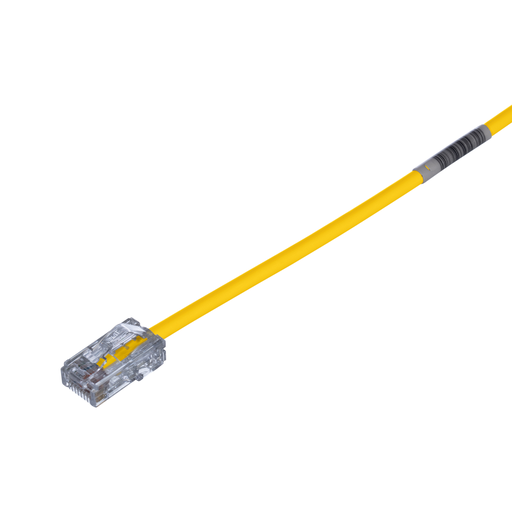

Cat 5e 28 AWG UTP Copper Patch Cord, 1 ft, Yellow
MFG #UTP28CH1YL
$10.88 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:
The TX5e™ Cat 5e UTP Patch Cord is a 1-Foot, 0.150-inch (3.8mm) diameter, Yellow cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
HESCO Part Number
PANUTP28CH1YL
UPC
074983485505
Manufacturer Part Number
UTP28CH1YL
Manufacturer
Panduit
Cat 5e 28 AWG UTP Copper Patch Cord, 1 ft, Yellow
MFG #UTP28CH1YL
Product Description:
The TX5e™ Cat 5e UTP Patch Cord is a 1-Foot, 0.150-inch (3.8mm) diameter, Yellow cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug™ modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
HESCO Part Number
PANUTP28CH1YL
UPC
074983485505
Manufacturer Part Number
UTP28CH1YL
Manufacturer
Panduit
$10.88 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Standards Met: Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Specifications
| Country of Origin | : | Mexico, China, Romania |
| Any Reason Not to Sell | : | N |
| Product Segment | : | EDI-ENT |
| Minimum Storage Temperature (°F) | : | -40 |
| Minimum Storage Temperature (°C) | : | -40 |
| Maximum Storage Temperature (°C) | : | 70 |
| Overall Length (m) | : | 0.3 |
| Maximum Storage Temperature (°F) | : | 158 |
| Maximum Operating Temperature (°C) | : | 60 |
| Cable Construction | : | U/UTP |
| Performance Level | : | Category 5e |
| Connector 1 Type | : | Modular Plug |
| Overall Length (ft.) | : | 1 |
| Plug Type | : | 8 Position |
| PoE Compatibility | : | PoE/PoE+/PoE++ |
| Nominal Cable Outside Diameter (In.) | : | 0.15 |
| Connector 2 Type | : | Modular Plug |
| Boot Color | : | No Boot |
| IEC Variant | : | 60603-7 |
| Product Type | : | Patch Cord |
| Minimum Operating Temperature (°C) | : | -10 |
| Nominal Cable Outside Diameter (mm) | : | 3.8 |
| Jacket Material | : | LSZH Material |
| Flammability Rating | : | CM/LSZH |
| Sub Brand | : | Pan-Net® |
| Conductor Type | : | Stranded |
| Patch Cord Type | : | Unshielded |
| Wiring Scheme | : | T568A |
| RapidID™ Enabled | : | Yes |
| Minimum Operating Temperature (°F) | : | 14 |
| Application | : | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Plug Housing Material | : | Polycarbonate |
| Color | : | Yellow |
| Maximum Operating Temperature (°F) | : | 140 |
| Conductor Gauge | : | 28 AWG |
Packaging Details | ||
| UPC | : | 07498348550 |
| GTIN Package | : | 00074983485505 |
| Standard Package Volume Ft3 | : | 0.0154 |
| Standard Package Weight Pounds | : | 0.0583 |
| Std Package Height In | : | .65 |
| Std Package Height MM | : | 16.51 |
| Std Package Length In | : | 8.05 |
| Std Package Length MM | : | 204.47 |
| Std Package Width In | : | 4.95 |
| Std Package Width MM | : | 125.73 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983485500 |
| Standard Carton Volume Ft3 | : | 0.1537 |
| Standard Carton Weight Pounds | : | 0.5826 |
| Std Carton Height In | : | 3.7 |
| Std Carton Height MM | : | 93.98 |
| Std Carton Length In | : | 9.1 |
| Std Carton Length MM | : | 231.14 |
| Std Carton Width In | : | 7.3 |
| Std Carton Width MM | : | 185.42 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983485505 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 3,640 |
| Pallet Volume | : | 55.959636 |
| Pallet Weight | : | 212.0664 |
| RoHS Compliant | : | Compliant |
