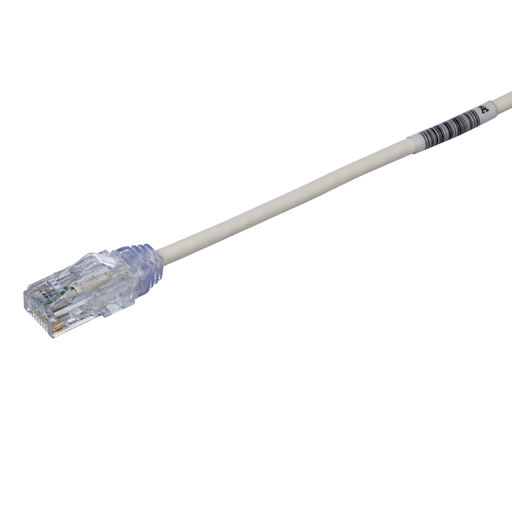

Cat 6 28 AWG UTP Copper Patch Cord, 5 ft, IW
MFG #UTP28SP5
$20.78 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
Product Description:
The TX6-28™ Cat 6 UTP Patch Cord is a 5-Foot, 0.150-inch (3.8mm) diameter, Off-White cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
HESCO Part Number
PANUTP28SP5
UPC
074983652174
Manufacturer Part Number
UTP28SP5
Manufacturer
Panduit
Cat 6 28 AWG UTP Copper Patch Cord, 5 ft, IW
MFG #UTP28SP5
Product Description:
The TX6-28™ Cat 6 UTP Patch Cord is a 5-Foot, 0.150-inch (3.8mm) diameter, Off-White cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
HESCO Part Number
PANUTP28SP5
UPC
074983652174
Manufacturer Part Number
UTP28SP5
Manufacturer
Panduit
$20.78 / E
(Must order in increments of 10/E)
(Must order in increments of 10/E)
- Features
- Specifications
- Resources
- Product
- Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E, meets ANSI/TIA-1096-A, meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant
- No
Packaging Details
| UPC | : | 07498365217 |
| GTIN Package | : | 00074983652174 |
| Standard Package Volume Ft3 | : | 0.0177 |
| Standard Package Weight Pounds | : | 0.1200 |
| Std Package Height In | : | .75 |
| Std Package Height MM | : | 19.05 |
| Std Package Length In | : | 8.05 |
| Std Package Length MM | : | 204.47 |
| Std Package Width In | : | 6.15 |
| Std Package Width MM | : | 156.21 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| GTIN Carton | : | 50074983652179 |
| Standard Carton Volume Ft3 | : | 0.1773 |
| Standard Carton Weight Pounds | : | 1.2000 |
| Std Carton Height In | : | 4.05 |
| Std Carton Height MM | : | 102.87 |
| Std Carton Length In | : | 9.65 |
| Std Carton Length MM | : | 245.11 |
| Std Carton Width In | : | 7.8 |
| Std Carton Width MM | : | 198.12 |
| Std Ctn Qty | : | 10 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983652174 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 10.0000 |
| Pallet Quantity | : | 2,880 |
| Pallet Volume | : | 51.072000 |
| Pallet Weight | : | 345.6000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | Costa Rica, China, Romania |
| Any Reason Not to Sell | : | N |
| Product Segment | : | EDI-ENT |
| RapidID™ Enabled | : | Yes |
| Boot Color | : | Clear |
| Performance Level | : | Category 6 |
| Wiring Scheme | : | T568B |
| Minimum Storage Temperature (°F) | : | -40 |
| Maximum Storage Temperature (°F) | : | 158 |
| Cable Construction | : | U/UTP |
| IEC Variant | : | 60603-7 |
| Application | : | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Digital video and broadband/baseband analog video(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
| Conductor Type | : | Stranded |
| Patch Cord Type | : | Unshielded |
| Sub Brand | : | Pan-Net® |
| Overall Length (m) | : | 1.52 |
| Nominal Cable Outside Diameter (mm) | : | 3.8 |
| Connector 2 Type | : | Modular Plug |
| Minimum Operating Temperature (°C) | : | -10 |
| Flammability Rating | : | CM/LSZH |
| Plug Housing Material | : | Polycarbonate |
| Connector 1 Type | : | Modular Plug |
| Maximum Operating Temperature (°C) | : | 75 |
| Maximum Storage Temperature (°C) | : | 70 |
| Minimum Storage Temperature (°C) | : | -40 |
| Jacket Material | : | LSZH Material |
| Maximum Operating Temperature (°F) | : | 167 |
| Minimum Operating Temperature (°F) | : | 14 |
| Overall Length (ft.) | : | 5 |
| Plug Type | : | Meets IEC 60603-7, RJ45 |
| PoE Compatibility | : | PoE/PoE+/PoE++ |
| Color | : | Off White |
| Product Type | : | Patch Cord |
| Nominal Cable Outside Diameter (In.) | : | 0.15 |
| Conductor Gauge | : | 28 AWG |
