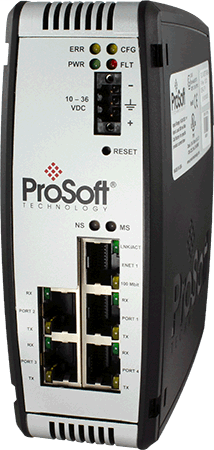

PROFINET® Device to Modbus® Serial Gateway with four serial ports
MFG #PLX31-PND-MBS4
$1,915.28 / E
EACH
EACH
Product Description:
The PROFINET device to Modbus Serial gateway offers bi-directional data transfers between a PROFINET Controller and Modbus serial (RTU and ASCII) devices. Each Modbus serial port can be configured as either a Modbus master or slave. The PROFINET interface operates as a PROFINET device (slave). The PLX31-PND-MBS4 gateway is a stand-alone DIN-rail mounted unit that provides Ethernet connectivity for network communications, remote configuration, and diagnostics. The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup.
HESCO Part Number
PROPLX31PNDMBS4
Manufacturer Part Number
PLX31-PND-MBS4
Manufacturer
Prosoft Technology
PROFINET® Device to Modbus® Serial Gateway with four serial ports
MFG #PLX31-PND-MBS4
Product Description:
The PROFINET device to Modbus Serial gateway offers bi-directional data transfers between a PROFINET Controller and Modbus serial (RTU and ASCII) devices. Each Modbus serial port can be configured as either a Modbus master or slave. The PROFINET interface operates as a PROFINET device (slave). The PLX31-PND-MBS4 gateway is a stand-alone DIN-rail mounted unit that provides Ethernet connectivity for network communications, remote configuration, and diagnostics. The onboard SD Card slot (SD card optional) is used for storing configuration files that can be used for recovery, transferring the configuration to another gateway, or general configuration backup.
HESCO Part Number
PROPLX31PNDMBS4
Manufacturer Part Number
PLX31-PND-MBS4
Manufacturer
Prosoft Technology
$1,915.28 / E
EACH
EACH
- Features
- Specifications
- Resources
- PROFINET v2 certification with PROFINET class A compliance
- Field-proven with thousands of Modbus serial devices, and multiple PROFINET controllers from multiple vendors
- Remotely view and diagnose Modbus and PROFINET networks
- Remote configuration via the free, intuitive, ProSoft Configuration Builder (PCB) software
- Each Modbus serial port supports master or slave mode
Hardware
| Power Supply | : | 24 VDC nominal |
| Power Supply | : | 10 to 36 VDC allowed |
| Power Supply | : | Positive, Negative, GND Terminals |
| Current Load | : | 24 VDC nominal @ 300 mA |
| Current Load | : | 10 to 36 VDC @ 610 mA maximum |
| Operating Temperature | : | -25°C to 70°C (-13°F to 158°F ) |
| Storage Temperature | : | -40°C to 80°C (-40°F to 176°F ) |
| Relative Humidity | : | 5% to 95% RH with no condensation |
| Shock | : | IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational) |
| Shock | : | IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operational) |
| Vibration | : | IEC 60068-2-6; 5G @ 10 to 150 Hz |
| Dimensions (H x W x D) | : | 5.38 x 1.99 x 4.38 in, 13.67 x 5.05 x 11.13 cm |
| LED Indicators | : | For configuration and protocol status errors |
| Number of Serial Ports | : | 4 |
| Shipped With Each Unit | : | 2.5 mm screwdriver |
| Shipped With Each Unit | : | ProSoft Solutions DVD |
| Shipped With Each Unit | : | J180 Power Connector |
| Shipped With Each Unit | : | 5’ straight-through Ethernet cable |
| Shipped With Each Unit | : | DB9 to Screw Terminal Adapter |
Modbus Serial Specifications | ||
| Command List | : | Up to 100 commands per master port, each fully configurable for Function Code, slave address, register to/from addressing and word/bit count. |
| Supported Modbus Function Codes | : | Read Coil Status |
| Supported Modbus Function Codes | : | Read Input Status |
| Supported Modbus Function Codes | : | Read Holding Registers |
| Supported Modbus Function Codes | : | Read Input Registers |
| Supported Modbus Function Codes | : | Force (Write) Single Coil |
| Supported Modbus Function Codes | : | Preset (Write) Single Holding Register |
| Supported Modbus Function Codes | : | Force (Write) Multiple Coils |
| Supported Modbus Function Codes | : | Preset (Write) Multiple Holding Registers |
| Supported Modbus Function Codes | : | Mask Write Holding Register (slave only) |
| Supported Modbus Function Codes | : | Read/Write Holding Registers (slave only) |
| Software configurable communication parameters | : | Baud rate: 110 baud to 115.2 kbps |
| Software configurable communication parameters | : | Parity: None, Even, Odd |
| Software configurable communication parameters | : | Data Size: 7 or 8 bits |
| Software configurable communication parameters | : | Stop bits: 1 or 2 |
| Software configurable communication parameters | : | RTS on/off delay: 0 to 65535 milliseconds |
| Software configurable communication parameters | : | Modbus Modes: RTU with CRC-16 or ASCII with LRC error checking |
| Software configurable communication parameters | : | Floating Point Data supported, support for Enron and Daniel |
| Polling of Command List | : | Configurable polling of command list, including continuous and on change of data |
| Status Data | : | Error codes available on an individual command basis. In addition, a slave status list is maintained per serial port |
| Node Address | : | 1 to 247 (software selectable) |
| RS Interface | : | RS232, RS422, and RS485 |
PROFINET Specifications | ||
| Driver Type | : | Class A Device |
| PROFINET I/O Data | : | 1440 bytes IN, 1440 bytes OUT |
| Exchange Types | : | Cyclic Real-time (RT) and Acyclic Data |
- PROFINET v2 certification with PROFINET class A compliance
- Field-proven with thousands of Modbus serial devices, and multiple PROFINET controllers from multiple vendors
- Remotely view and diagnose Modbus and PROFINET networks
- Remote configuration via the free, intuitive, ProSoft Configuration Builder (PCB) software
- Each Modbus serial port supports master or slave mode
Hardware
Power Supply : 24 VDC nominal Power Supply : 10 to 36 VDC allowed Power Supply : Positive, Negative, GND Terminals Current Load : 24 VDC nominal @ 300 mA Current Load : 10 to 36 VDC @ 610 mA maximum Operating Temperature : -25°C to 70°C (-13°F to 158°F ) Storage Temperature : -40°C to 80°C (-40°F to 176°F ) Relative Humidity : 5% to 95% RH with no condensation Shock : IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational) Shock : IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operational) Vibration : IEC 60068-2-6; 5G @ 10 to 150 Hz Dimensions (H x W x D) : 5.38 x 1.99 x 4.38 in, 13.67 x 5.05 x 11.13 cm LED Indicators : For configuration and protocol status errors Number of Serial Ports : 4 Shipped With Each Unit : 2.5 mm screwdriver Shipped With Each Unit : ProSoft Solutions DVD Shipped With Each Unit : J180 Power Connector Shipped With Each Unit : 5’ straight-through Ethernet cable Shipped With Each Unit : DB9 to Screw Terminal Adapter Modbus Serial Specifications
Command List : Up to 100 commands per master port, each fully configurable for Function Code, slave address, register to/from addressing and word/bit count. Supported Modbus Function Codes : Read Coil Status Supported Modbus Function Codes : Read Input Status Supported Modbus Function Codes : Read Holding Registers Supported Modbus Function Codes : Read Input Registers Supported Modbus Function Codes : Force (Write) Single Coil Supported Modbus Function Codes : Preset (Write) Single Holding Register Supported Modbus Function Codes : Force (Write) Multiple Coils Supported Modbus Function Codes : Preset (Write) Multiple Holding Registers Supported Modbus Function Codes : Mask Write Holding Register (slave only) Supported Modbus Function Codes : Read/Write Holding Registers (slave only) Software configurable communication parameters : Baud rate: 110 baud to 115.2 kbps Software configurable communication parameters : Parity: None, Even, Odd Software configurable communication parameters : Data Size: 7 or 8 bits Software configurable communication parameters : Stop bits: 1 or 2 Software configurable communication parameters : RTS on/off delay: 0 to 65535 milliseconds Software configurable communication parameters : Modbus Modes: RTU with CRC-16 or ASCII with LRC error checking Software configurable communication parameters : Floating Point Data supported, support for Enron and Daniel Polling of Command List : Configurable polling of command list, including continuous and on change of data Status Data : Error codes available on an individual command basis. In addition, a slave status list is maintained per serial port Node Address : 1 to 247 (software selectable) RS Interface : RS232, RS422, and RS485 PROFINET Specifications
Driver Type : Class A Device PROFINET I/O Data : 1440 bytes IN, 1440 bytes OUT Exchange Types : Cyclic Real-time (RT) and Acyclic Data - Certifications
Ex Certificate (ATEX Directive)CB SafetyCE MarkKorean KC RegistrationProfibus/Profinet CertificateUL/cUL; Class 1, Div 2
DownloadsPLX31-PND-MBS4 DatasheetPLX3x User Manual
PLX31-PND-MBS4 - GSDML File
