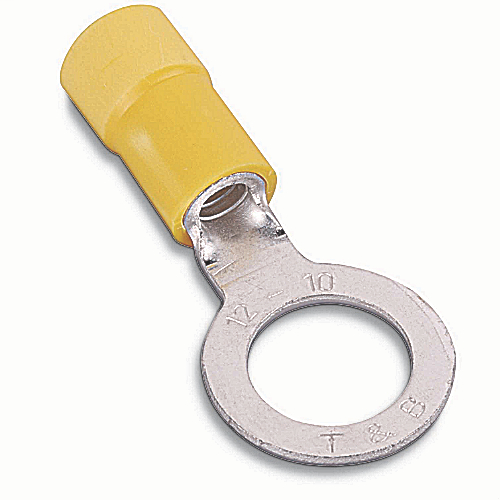

Ring Terminal
MFG #10RC-14X
$2.61 / e
(Must order in increments of 50/e)
(Must order in increments of 50/e)
Product Description:
Expanded Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC14X
UPC
78621080049
Manufacturer Part Number
10RC-14X
Manufacturer
Thomas & Betts
Ring Terminal
MFG #10RC-14X
Product Description:
Expanded Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC14X
UPC
78621080049
Manufacturer Part Number
10RC-14X
Manufacturer
Thomas & Betts
$2.61 / e
(Must order in increments of 50/e)
(Must order in increments of 50/e)
- Features
- Specifications
- Resources
- CSA
- UL
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
Dimension Information
| Stock Thickness | : | .04 |
| A (inches) | : | 1.16 |
| B (inches) | : | .50 |
| C (inches) | : | .27 |
| M (inches) | : | .90 |
| Maximum Insulation (inches) | : | .250 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Height | : | 8.25 |
| Package Width | : | 10.25 |
| Package Length | : | 12 |
| T&B Sold in UOM | : | Each |
| Outer Package | : | 2500 |
| Order Multiple | : | 50 |
| Inner Package | : | 50 |
| Alternate Package Qty | : | RC717-250 |
| Package Type | : | Standard |
| T&B Weight Per UOM | : | 6.25 lbs. per 1000 |
Tooling | ||
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Recommended Tool | : | ERG4001 |
General | ||
| Terminal Series | : | RC |
| Stud Size | : | 1/4 |
| Wire Range | : | 12-10 |
| Insulation Type | : | Expanded Insulated Vinyl |
| Material | : | Copper |
| Color | : | Yellow |
| Finish | : | Electro Tin-Plated |
Specifications | ||
| Voltage Rating | : | 600V |
| Temperature Rating | : | 105°C |
| Flammability Rating | : | UL 94 V-0 |
- CSA
- UL
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
Dimension Information
Stock Thickness : .04 A (inches) : 1.16 B (inches) : .50 C (inches) : .27 M (inches) : .90 Maximum Insulation (inches) : .250 Certifications
RoHS Compliance : Yes Packaging
Package Height : 8.25 Package Width : 10.25 Package Length : 12 T&B Sold in UOM : Each Outer Package : 2500 Order Multiple : 50 Inner Package : 50 Alternate Package Qty : RC717-250 Package Type : Standard T&B Weight Per UOM : 6.25 lbs. per 1000 Tooling
Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 Recommended Tool : ERG4001 General
Terminal Series : RC Stud Size : 1/4 Wire Range : 12-10 Insulation Type : Expanded Insulated Vinyl Material : Copper Color : Yellow Finish : Electro Tin-Plated Specifications
Voltage Rating : 600V Temperature Rating : 105°C Flammability Rating : UL 94 V-0 - Tooling
