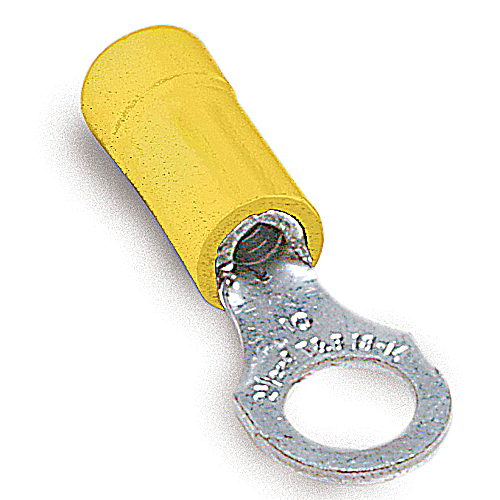

Ring Terminal
MFG #10RC-38
$2.18 / E
EACH
EACH
Product Description:
Vinyl-Insulated Ring Terminal, Length 1.29 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 3/8 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC38
UPC
78621080050
Manufacturer Part Number
10RC-38
Manufacturer
Thomas & Betts
Ring Terminal
MFG #10RC-38
Product Description:
Vinyl-Insulated Ring Terminal, Length 1.29 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 3/8 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC38
UPC
78621080050
Manufacturer Part Number
10RC-38
Manufacturer
Thomas & Betts
$2.18 / E
EACH
EACH
- Features
- Specifications
- Resources
- These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
- CSA
- UL
Dimension Information
| C (inches) | : | .44 |
| B (inches) | : | .59 |
| M (inches) | : | .99 |
| Stock Thickness | : | .04 |
| A (inches) | : | 1.29 |
| Maximum Insulation (inches) | : | .210 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Order Multiple | : | 50 |
| Inner Package | : | 50 |
| T&B Weight Per UOM | : | 5 lbs. per 1000 |
| Package Type | : | Standard |
| Outer Package | : | 250 |
| T&B Sold in UOM | : | Each |
| Package Width | : | 8.5 |
| Package Height | : | 8.75 |
| Alternate Package Qty | : | RC737 |
| Package Length | : | 15 |
Tooling | ||
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Recommended Tool | : | ERG4001 |
General | ||
| Finish | : | Electro Tin-Plated |
| Wire Range | : | 12-10 |
| Stud Size | : | 3/8 |
| Material | : | Copper |
| Insulation Type | : | Insulated Vinyl |
| Terminal Series | : | RC |
| Color | : | Yellow |
Specifications | ||
| Temperature Rating | : | 105°C |
| Flammability Rating | : | UL 94 V-0 |
| Voltage Rating | : | 600V |
- These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
- CSA
- UL
Dimension Information
C (inches) : .44 B (inches) : .59 M (inches) : .99 Stock Thickness : .04 A (inches) : 1.29 Maximum Insulation (inches) : .210 Certifications
RoHS Compliance : Yes Packaging
Order Multiple : 50 Inner Package : 50 T&B Weight Per UOM : 5 lbs. per 1000 Package Type : Standard Outer Package : 250 T&B Sold in UOM : Each Package Width : 8.5 Package Height : 8.75 Alternate Package Qty : RC737 Package Length : 15 Tooling
Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 Recommended Tool : ERG4001 General
Finish : Electro Tin-Plated Wire Range : 12-10 Stud Size : 3/8 Material : Copper Insulation Type : Insulated Vinyl Terminal Series : RC Color : Yellow Specifications
Temperature Rating : 105°C Flammability Rating : UL 94 V-0 Voltage Rating : 600V - Certifications
RoHS Compliance
