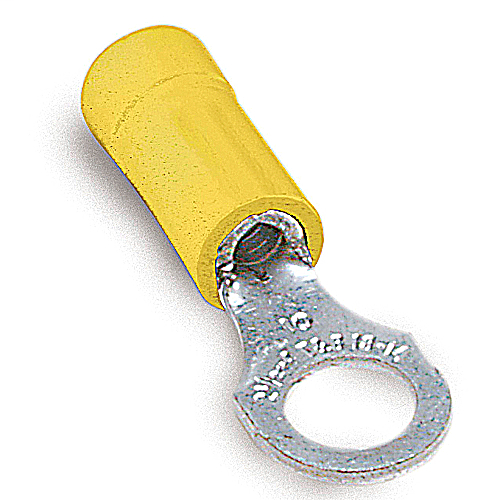

T&B 10RC-8 Insulated Vinyl Ring Terminal For Wire Range 12-10 Stud Size #8, Yellow
MFG #10RC-8
$1.61 / E
EACH
EACH
Product Description:
Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC8
UPC
78621080038
Manufacturer Part Number
10RC-8
Manufacturer
Thomas & Betts
T&B 10RC-8 Insulated Vinyl Ring Terminal For Wire Range 12-10 Stud Size #8, Yellow
MFG #10RC-8
Product Description:
Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC8
UPC
78621080038
Manufacturer Part Number
10RC-8
Manufacturer
Thomas & Betts
$1.61 / E
EACH
EACH
- Features
- Specifications
- Resources
- These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
- CSA
- UL
Dimension Information
| C (inches) | : | .27 |
| M (inches) | : | .90 |
| B (inches) | : | .31 |
| Maximum Insulation (inches) | : | .210 |
| Stock Thickness | : | .04 |
| A (inches) | : | 1.06 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Length | : | 14.8 |
| Outer Package | : | 250 |
| Inner Package | : | 50 |
| T&B Weight Per UOM | : | 6.25 lbs. per 1000 |
| Package Width | : | 9.3 |
| Package Type | : | Standard |
| Order Multiple | : | 50 |
| T&B Sold in UOM | : | Each |
| Package Height | : | 8.9 |
| Alternate Package Qty | : | RC777 |
Tooling | ||
| Recommended Tool | : | ERG4001 |
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
General | ||
| Material | : | Copper |
| Wire Range | : | 12-10 |
| Terminal Series | : | RC |
| Insulation Type | : | Insulated Vinyl |
| Color | : | Yellow |
| Finish | : | Electro Tin-Plated |
| Stud Size | : | #8 |
Specifications | ||
| Voltage Rating | : | 600V |
| Flammability Rating | : | UL 94 V-0 |
| Temperature Rating | : | 105°C |
- These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
- CSA
- UL
Dimension Information
C (inches) : .27 M (inches) : .90 B (inches) : .31 Maximum Insulation (inches) : .210 Stock Thickness : .04 A (inches) : 1.06 Certifications
RoHS Compliance : Yes Packaging
Package Length : 14.8 Outer Package : 250 Inner Package : 50 T&B Weight Per UOM : 6.25 lbs. per 1000 Package Width : 9.3 Package Type : Standard Order Multiple : 50 T&B Sold in UOM : Each Package Height : 8.9 Alternate Package Qty : RC777 Tooling
Recommended Tool : ERG4001 Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 General
Material : Copper Wire Range : 12-10 Terminal Series : RC Insulation Type : Insulated Vinyl Color : Yellow Finish : Electro Tin-Plated Stud Size : #8 Specifications
Voltage Rating : 600V Flammability Rating : UL 94 V-0 Temperature Rating : 105°C - Application Support
