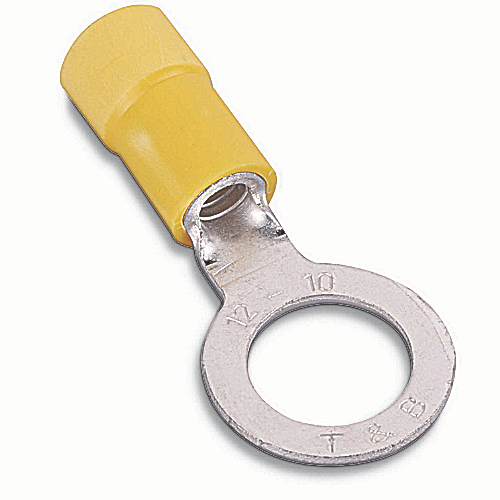

Ring Terminal
MFG #10RC-8X
$2.41 / e
EACH
EACH
Product Description:
Expanded Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .250, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC8X
UPC
78621080041
Manufacturer Part Number
10RC-8X
Manufacturer
Thomas & Betts
Ring Terminal
MFG #10RC-8X
Product Description:
Expanded Vinyl-Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .250, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
HESCO Part Number
TB10RC8X
UPC
78621080041
Manufacturer Part Number
10RC-8X
Manufacturer
Thomas & Betts
$2.41 / e
EACH
EACH
- Features
- Specifications
- Resources
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
- CSA
- UL
Dimension Information
| M (inches) | : | .90 |
| Stock Thickness | : | .04 |
| A (inches) | : | 1.06 |
| Maximum Insulation (inches) | : | .250 |
| C (inches) | : | .27 |
| B (inches) | : | .31 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Inner Package | : | 50 |
| Package Width | : | 4.69 |
| Alternate Package Qty | : | RC777-250 |
| Package Type | : | Standard |
| Package Length | : | 6.3 |
| T&B Weight Per UOM | : | 5 lbs. per 1000 |
| Package Height | : | 3.3 |
| Outer Package | : | 250 |
| T&B Sold in UOM | : | Each |
| Order Multiple | : | 50 |
Tooling | ||
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Recommended Tool | : | ERG4001 |
General | ||
| Finish | : | Electro Tin-Plated |
| Color | : | Yellow |
| Insulation Type | : | Expanded Insulated Vinyl |
| Material | : | Copper |
| Terminal Series | : | RC |
| Stud Size | : | #8 |
| Wire Range | : | 12-10 |
Specifications | ||
| Temperature Rating | : | 105°C |
| Flammability Rating | : | UL 94 V-0 |
| Voltage Rating | : | 600V |
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
- CSA
- UL
Dimension Information
M (inches) : .90 Stock Thickness : .04 A (inches) : 1.06 Maximum Insulation (inches) : .250 C (inches) : .27 B (inches) : .31 Certifications
RoHS Compliance : Yes Packaging
Inner Package : 50 Package Width : 4.69 Alternate Package Qty : RC777-250 Package Type : Standard Package Length : 6.3 T&B Weight Per UOM : 5 lbs. per 1000 Package Height : 3.3 Outer Package : 250 T&B Sold in UOM : Each Order Multiple : 50 Tooling
Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 Recommended Tool : ERG4001 General
Finish : Electro Tin-Plated Color : Yellow Insulation Type : Expanded Insulated Vinyl Material : Copper Terminal Series : RC Stud Size : #8 Wire Range : 12-10 Specifications
Temperature Rating : 105°C Flammability Rating : UL 94 V-0 Voltage Rating : 600V - Application Support
