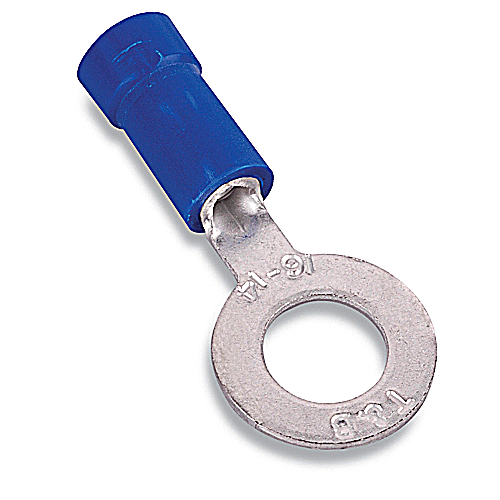

Ring Terminal
MFG #14RB-10X
$1.67 / E
EACH
EACH
Product Description:
Expanded Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
HESCO Part Number
TB14RB10X
UPC
78621080072
Manufacturer Part Number
14RB-10X
Manufacturer
Thomas & Betts
Ring Terminal
MFG #14RB-10X
Product Description:
Expanded Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
HESCO Part Number
TB14RB10X
UPC
78621080072
Manufacturer Part Number
14RB-10X
Manufacturer
Thomas & Betts
$1.67 / E
EACH
EACH
- Features
- Specifications
- Resources
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
- UL
- CSA
Dimension Information
| B (inches) | : | .31 |
| Stock Thickness | : | .03 |
| M (inches) | : | .81 |
| Maximum Insulation (inches) | : | .200 |
| C (inches) | : | .27 |
| A (inches) | : | .97 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Inner Package | : | 100 |
| Package Width | : | 9 |
| Package Type | : | Standard |
| Package Height | : | 7.3 |
| Package Length | : | 10.6 |
| Outer Package | : | 500 |
| T&B Weight Per UOM | : | 3.5 lbs. per 100 |
| Alternate Package Qty | : | RB877-200 |
| Order Multiple | : | 100 |
| T&B Sold in UOM | : | Each |
Tooling | ||
| Recommended Tool | : | ERG4001 |
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
General | ||
| Material | : | Copper |
| Stud Size | : | #10 |
| Finish | : | Electro Tin-Plated |
| Terminal Series | : | RB |
| Color | : | Blue |
| Wire Range | : | 18-14 |
| Insulation Type | : | Expanded Insulated Vinyl |
Specifications | ||
| Temperature Rating | : | 105°C |
| Voltage Rating | : | 600V |
| Flammability Rating | : | UL 94 V-0 |
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
- UL
- CSA
Dimension Information
B (inches) : .31 Stock Thickness : .03 M (inches) : .81 Maximum Insulation (inches) : .200 C (inches) : .27 A (inches) : .97 Certifications
RoHS Compliance : Yes Packaging
Inner Package : 100 Package Width : 9 Package Type : Standard Package Height : 7.3 Package Length : 10.6 Outer Package : 500 T&B Weight Per UOM : 3.5 lbs. per 100 Alternate Package Qty : RB877-200 Order Multiple : 100 T&B Sold in UOM : Each Tooling
Recommended Tool : ERG4001 Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 General
Material : Copper Stud Size : #10 Finish : Electro Tin-Plated Terminal Series : RB Color : Blue Wire Range : 18-14 Insulation Type : Expanded Insulated Vinyl Specifications
Temperature Rating : 105°C Voltage Rating : 600V Flammability Rating : UL 94 V-0 - Tooling
Tool Charts
Application SupportWire Guide TablesOverview
CertificationsRoHS Compliance
