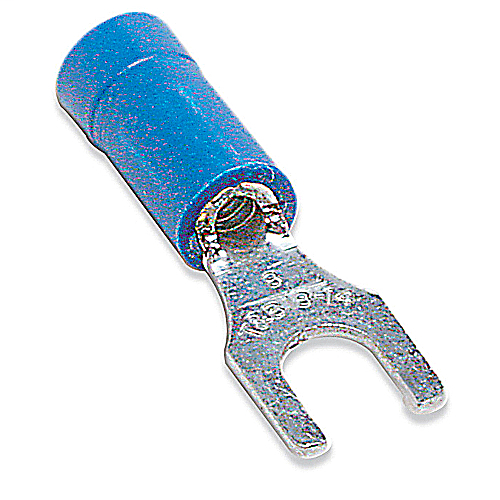

Fork Terminal
MFG #14RB-6FCP
$1.93 / E
EACH
EACH
Product Description:
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, Mini-Pack
HESCO Part Number
TB14RB6FCP
UPC
78621089930
Manufacturer Part Number
14RB-6FCP
Manufacturer
Thomas & Betts
Fork Terminal
MFG #14RB-6FCP
Product Description:
Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, Mini-Pack
HESCO Part Number
TB14RB6FCP
UPC
78621089930
Manufacturer Part Number
14RB-6FCP
Manufacturer
Thomas & Betts
$1.93 / E
EACH
EACH
- Features
- Specifications
- Resources
- UL
- CSA
- These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Dimension Information
| A (inches) | : | .97 |
| B (inches) | : | .31 |
| Stock Thickness | : | .03 |
| Maximum Insulation (inches) | : | .170 |
| M (inches) | : | .81 |
| C (inches) | : | .27 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Outer Package | : | 100 |
| Package Length | : | 16.7 |
| Package Type | : | Mini-Pack |
| Inner Package | : | 20 |
| T&B Sold in UOM | : | Each |
| Package Height | : | 4.19 |
| Order Multiple | : | 20 |
| T&B Weight Per UOM | : | 3.75 lbs. per 1000 |
| Alternate Package Qty | : | 14RB6F |
| Package Width | : | 7.2 |
Tooling | ||
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Recommended Tool | : | ERG4001 |
General | ||
| Finish | : | Electro Tin-Plated |
| Material | : | Copper |
| Terminal Series | : | RB |
| Wire Range | : | 18-14 |
| Color | : | Blue |
| Insulation Type | : | Insulated Vinyl |
| Stud Size | : | #6 |
Specifications | ||
| Flammability Rating | : | UL 94 V-0 |
| Voltage Rating | : | 600V |
| Temperature Rating | : | 105°C |
- UL
- CSA
- These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Dimension Information
A (inches) : .97 B (inches) : .31 Stock Thickness : .03 Maximum Insulation (inches) : .170 M (inches) : .81 C (inches) : .27 Certifications
RoHS Compliance : Yes Packaging
Outer Package : 100 Package Length : 16.7 Package Type : Mini-Pack Inner Package : 20 T&B Sold in UOM : Each Package Height : 4.19 Order Multiple : 20 T&B Weight Per UOM : 3.75 lbs. per 1000 Alternate Package Qty : 14RB6F Package Width : 7.2 Tooling
Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 Recommended Tool : ERG4001 General
Finish : Electro Tin-Plated Material : Copper Terminal Series : RB Wire Range : 18-14 Color : Blue Insulation Type : Insulated Vinyl Stud Size : #6 Specifications
Flammability Rating : UL 94 V-0 Voltage Rating : 600V Temperature Rating : 105°C - Certifications
RoHS Compliance
