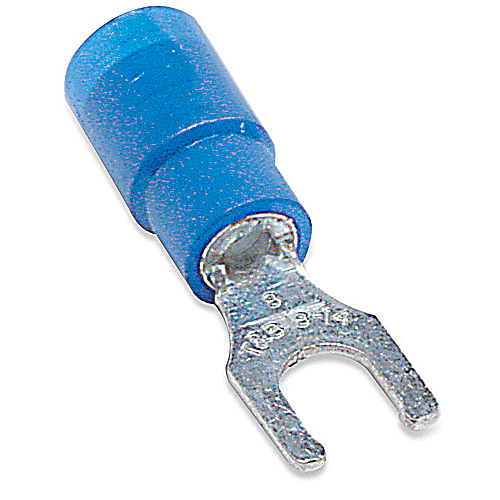

Locking Fork Terminal
MFG #14RB-8FLX
$1.83 / E
EACH
EACH
Product Description:
Expanded Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
HESCO Part Number
TB14RB8FLX
UPC
78621080655
Manufacturer Part Number
14RB-8FLX
Manufacturer
Thomas & Betts
Locking Fork Terminal
MFG #14RB-8FLX
Product Description:
Expanded Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
HESCO Part Number
TB14RB8FLX
UPC
78621080655
Manufacturer Part Number
14RB-8FLX
Manufacturer
Thomas & Betts
$1.83 / E
EACH
EACH
- Features
- Specifications
- Resources
- UL
- CSA
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Dimension Information
| Stock Thickness | : | .03 |
| Maximum Insulation (inches) | : | .200 |
| A (inches) | : | .97 |
| M (inches) | : | .81 |
| C (inches) | : | .27 |
| B (inches) | : | .31 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Type | : | Standard |
| T&B Sold in UOM | : | Each |
| Order Multiple | : | 100 |
| Package Length | : | 15.1 |
| Package Width | : | 9.6 |
| Outer Package | : | 500 |
| Alternate Package Qty | : | RB2237-200 |
| Package Height | : | 8.9 |
| T&B Weight Per UOM | : | 2.5 lbs. per 1000 |
| Inner Package | : | 100 |
Tooling | ||
| Application Tools | : | ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145C |
| Recommended Tool | : | ERG4001 |
General | ||
| Material | : | Copper |
| Insulation Type | : | Expanded Insulated Vinyl |
| Color | : | Blue |
| Finish | : | Electro Tin-Plated |
| Stud Size | : | #8 |
| Terminal Series | : | RB |
| Wire Range | : | 18-14 |
Specifications | ||
| Flammability Rating | : | UL 94 V-0 |
| Temperature Rating | : | 105°C |
| Voltage Rating | : | 600V |
- UL
- CSA
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Dimension Information
Stock Thickness : .03 Maximum Insulation (inches) : .200 A (inches) : .97 M (inches) : .81 C (inches) : .27 B (inches) : .31 Certifications
RoHS Compliance : Yes Packaging
Package Type : Standard T&B Sold in UOM : Each Order Multiple : 100 Package Length : 15.1 Package Width : 9.6 Outer Package : 500 Alternate Package Qty : RB2237-200 Package Height : 8.9 T&B Weight Per UOM : 2.5 lbs. per 1000 Inner Package : 100 Tooling
Application Tools : ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145C Recommended Tool : ERG4001 General
Material : Copper Insulation Type : Expanded Insulated Vinyl Color : Blue Finish : Electro Tin-Plated Stud Size : #8 Terminal Series : RB Wire Range : 18-14 Specifications
Flammability Rating : UL 94 V-0 Temperature Rating : 105°C Voltage Rating : 600V - Tooling
