Pin Terminals
MFG #18RA-47PT
$2.44 / e
EACH
EACH
Product Description:

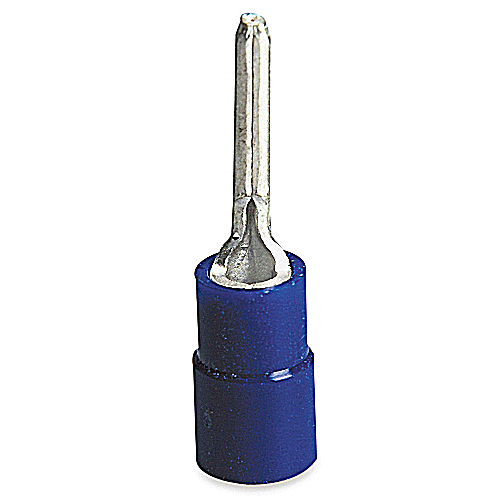

Vinyl-Insulated Pin Terminal, Length .87 Inches, Pin Length .390 Inches, Diameter .075 Inches, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
HESCO Part Number
TB18RA47PT
UPC
78621003415
Manufacturer Part Number
18RA-47PT
Manufacturer
Thomas & Betts
Pin Terminals
MFG #18RA-47PT
Product Description:
Vinyl-Insulated Pin Terminal, Length .87 Inches, Pin Length .390 Inches, Diameter .075 Inches, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
HESCO Part Number
TB18RA47PT
UPC
78621003415
Manufacturer Part Number
18RA-47PT
Manufacturer
Thomas & Betts
$2.44 / e
EACH
EACH
- Features
- Specifications
- Resources
- Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Dimension Information
| Stock Thickness | : | .03 |
| Diameter D (inches) | : | 0.075 |
| Length (inches) | : | .85 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Outer Package | : | 500 |
| Order Multiple | : | 100 |
| T&B Weight Per UOM | : | 2.5 lbs. per 1000 |
| Package Length | : | 15.1 |
| Alternate Package Qty | : | RA47PT |
| T&B Sold in UOM | : | Each |
| Package Height | : | 8.9 |
| Package Type | : | Standard |
| Inner Package | : | 100 |
| Package Width | : | 9.5 |
Tooling | ||
| Recommended Tool | : | ERG4001 |
| Application Tools | : | WT1455, ERG4001, ERG4003 |
General | ||
| Finish | : | Electro Tin-Plated |
| Insulation Type | : | Insulated Vinyl |
| Terminal Series | : | RA |
| Wire Range | : | 22-18 |
| Color | : | Red |
| Material | : | Copper |
Specifications | ||
| Flammability Rating | : | UL 94 V-0 |
| Voltage Rating | : | 300V |
| Temperature Rating | : | 150°C |
- Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Dimension Information
Stock Thickness : .03 Diameter D (inches) : 0.075 Length (inches) : .85 Certifications
RoHS Compliance : Yes Packaging
Outer Package : 500 Order Multiple : 100 T&B Weight Per UOM : 2.5 lbs. per 1000 Package Length : 15.1 Alternate Package Qty : RA47PT T&B Sold in UOM : Each Package Height : 8.9 Package Type : Standard Inner Package : 100 Package Width : 9.5 Tooling
Recommended Tool : ERG4001 Application Tools : WT1455, ERG4001, ERG4003 General
Finish : Electro Tin-Plated Insulation Type : Insulated Vinyl Terminal Series : RA Wire Range : 22-18 Color : Red Material : Copper Specifications
Flammability Rating : UL 94 V-0 Voltage Rating : 300V Temperature Rating : 150°C - Application Support
