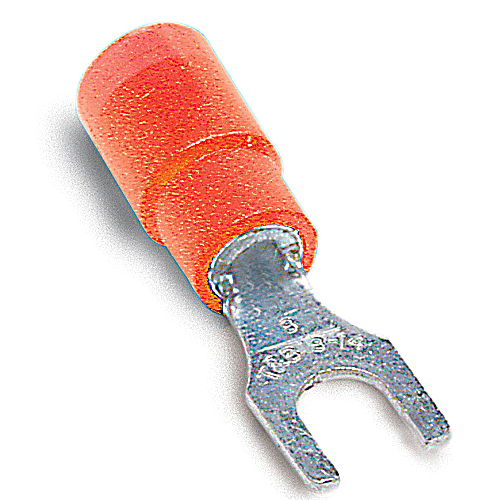

Fork Terminal
MFG #18RA-6FX
$2.08 / E
EACH
EACH
Product Description:
Expanded Vinyl-Insulated Fork Terminal, Length .94 Inches, Width .25 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
HESCO Part Number
TB18RA6FX
UPC
78621080086
Manufacturer Part Number
18RA-6FX
Manufacturer
Thomas & Betts
Fork Terminal
MFG #18RA-6FX
Product Description:
Expanded Vinyl-Insulated Fork Terminal, Length .94 Inches, Width .25 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
HESCO Part Number
TB18RA6FX
UPC
78621080086
Manufacturer Part Number
18RA-6FX
Manufacturer
Thomas & Betts
$2.08 / E
EACH
EACH
- Features
- Specifications
- Resources
- CSA
- UL
- Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.
Dimension Information
| M (inches) | : | .81 |
| A (inches) | : | .94 |
| Maximum Insulation (inches) | : | .170 |
| Stock Thickness | : | .03 |
| B (inches) | : | .25 |
| C (inches) | : | .27 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Width | : | 8.7 |
| Package Length | : | 10.4 |
| Package Height | : | 7.2 |
| Outer Package | : | 500 |
| Package Type | : | Standard |
| T&B Weight Per UOM | : | 0.25 lbs. per 100 |
| T&B Sold in UOM | : | Each |
| Inner Package | : | 100 |
| Alternate Package Qty | : | RA1167-170 |
| Order Multiple | : | 100 |
Tooling | ||
| Recommended Tool | : | ERG4001 |
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
General | ||
| Terminal Series | : | RA |
| Finish | : | Electro Tin-Plated |
| Material | : | Copper |
| Stud Size | : | #6 |
| Insulation Type | : | Expanded Insulated Vinyl |
| Wire Range | : | 22-16 |
| Color | : | Red |
Specifications | ||
| Voltage Rating | : | 600V |
| Temperature Rating | : | 105°C |
| Flammability Rating | : | UL 94 V-0 |
- CSA
- UL
- Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.
Dimension Information
M (inches) : .81 A (inches) : .94 Maximum Insulation (inches) : .170 Stock Thickness : .03 B (inches) : .25 C (inches) : .27 Certifications
RoHS Compliance : Yes Packaging
Package Width : 8.7 Package Length : 10.4 Package Height : 7.2 Outer Package : 500 Package Type : Standard T&B Weight Per UOM : 0.25 lbs. per 100 T&B Sold in UOM : Each Inner Package : 100 Alternate Package Qty : RA1167-170 Order Multiple : 100 Tooling
Recommended Tool : ERG4001 Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 General
Terminal Series : RA Finish : Electro Tin-Plated Material : Copper Stud Size : #6 Insulation Type : Expanded Insulated Vinyl Wire Range : 22-16 Color : Red Specifications
Voltage Rating : 600V Temperature Rating : 105°C Flammability Rating : UL 94 V-0 - Certifications
