Ring Terminal
MFG #18RA-8X
$1.92 / e
EACH
EACH
Product Description:

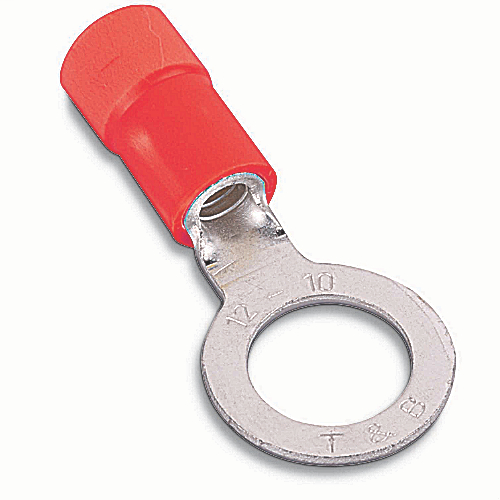

Expanded Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
HESCO Part Number
TB18RA8X
UPC
78621080091
Manufacturer Part Number
18RA-8X
Manufacturer
Thomas & Betts
Ring Terminal
MFG #18RA-8X
Product Description:
Expanded Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
HESCO Part Number
TB18RA8X
UPC
78621080091
Manufacturer Part Number
18RA-8X
Manufacturer
Thomas & Betts
$1.92 / e
EACH
EACH
- Features
- Specifications
- Resources
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
- UL
- CSA
Dimension Information
| Stock Thickness | : | .03 |
| C (inches) | : | .27 |
| Maximum Insulation (inches) | : | .170 |
| M (inches) | : | .81 |
| A (inches) | : | .97 |
| B (inches) | : | .31 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Length | : | 10.5 |
| T&B Sold in UOM | : | Each |
| Alternate Package Qty | : | RA867-170 |
| Outer Package | : | 500 |
| Package Type | : | Standard |
| Inner Package | : | 100 |
| Package Height | : | 7 |
| Package Width | : | 8.75 |
| Order Multiple | : | 100 |
| T&B Weight Per UOM | : | 2.5 lbs. per 1000 |
Tooling | ||
| Application Tools | : | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Recommended Tool | : | ERG4001 |
General | ||
| Color | : | Red |
| Stud Size | : | #8 |
| Finish | : | Electro Tin-Plated |
| Material | : | Copper |
| Wire Range | : | 22-16 |
| Insulation Type | : | Expanded Insulated Vinyl |
| Terminal Series | : | RA |
Specifications | ||
| Temperature Rating | : | 105°C |
| Flammability Rating | : | UL 94 V-0 |
| Voltage Rating | : | 600V |
- Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
- UL
- CSA
Dimension Information
Stock Thickness : .03 C (inches) : .27 Maximum Insulation (inches) : .170 M (inches) : .81 A (inches) : .97 B (inches) : .31 Certifications
RoHS Compliance : Yes Packaging
Package Length : 10.5 T&B Sold in UOM : Each Alternate Package Qty : RA867-170 Outer Package : 500 Package Type : Standard Inner Package : 100 Package Height : 7 Package Width : 8.75 Order Multiple : 100 T&B Weight Per UOM : 2.5 lbs. per 1000 Tooling
Application Tools : WT145C, WT2000, WT112M, ERG4001, ERG4003 Recommended Tool : ERG4001 General
Color : Red Stud Size : #8 Finish : Electro Tin-Plated Material : Copper Wire Range : 22-16 Insulation Type : Expanded Insulated Vinyl Terminal Series : RA Specifications
Temperature Rating : 105°C Flammability Rating : UL 94 V-0 Voltage Rating : 600V - Certifications
RoHS Compliance
ToolingTool Charts
