Split-Bolt
MFG #1HPW
$49.17Â /Â E
EACH
EACH
Product Description:

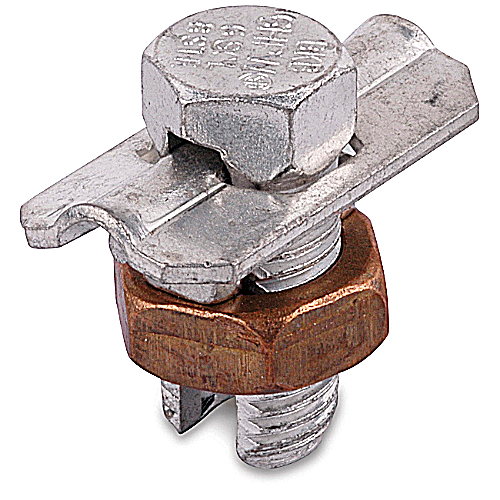

Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1 Str.-8 Sol.
HESCO Part Number
BLB1HPW
UPC
78378620036
Manufacturer Part Number
1HPW
Manufacturer
Thomas & Betts
Split-Bolt
MFG #1HPW
Product Description:
Type HPW Plated Split-Bolt Connector with Spacer and Washer made of Copper Alloy for Use on Copper, Aluminum, ACSR Conductors. Conductor Range for Equal Main and Tap 1 Str.-8 Sol.
HESCO Part Number
BLB1HPW
UPC
78378620036
Manufacturer Part Number
1HPW
Manufacturer
Thomas & Betts
$49.17Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Spacer and washer of tin plated electrolytic copper.
- Contoured spacer and bell mouth washer distribute pressure over large area of conductor. Large countoured spacer provides wide separation between copper and aluminum conductors.
- Splicing, tapping or terminating conductors in power and grounding electrical connection.
Packaging
| Outer Quantity | :Â Â | 100 |
| Outer Dimensions (inches) | :Â Â | 7.4x6.5x5.7 |
| Weight Uom | :Â Â | 16.94 lbs. per 100 |
North American Specifications (UNSPSC) | ||
| UNSPSC | :Â Â | 39121408 Mechanical connectors |
| IGCC | :Â Â | 4541 Mechanical connectors |
| Brand Name | :Â Â | Blackburn |
| Type | :Â Â | Split-Bolt |
| Special Features | :Â Â | Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Spacer and washer of tin plated electrolytic copper. |
| Application | :Â Â | Splicing, tapping or terminating conductors in power and grounding electrical connection. |
| Standard | :Â Â | UL E9809 |
| Material | :Â Â | Copper Alloy |
| Finish | :Â Â | Electro Tin-Plated |
European Specifications (ETIM) | ||
| ETIM | :Â Â | EC000491 Earth terminal clamp |
| Suitable for | :Â Â | Round conductor |
| Material | :Â Â | Copper |
- Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Spacer and washer of tin plated electrolytic copper.
- Contoured spacer and bell mouth washer distribute pressure over large area of conductor. Large countoured spacer provides wide separation between copper and aluminum conductors.
- Splicing, tapping or terminating conductors in power and grounding electrical connection.
Packaging
Outer Quantity :Â Â 100 Outer Dimensions (inches) :Â Â 7.4x6.5x5.7 Weight Uom :Â Â 16.94 lbs. per 100 North American Specifications (UNSPSC)
UNSPSC :Â Â 39121408 Mechanical connectors IGCC :Â Â 4541 Mechanical connectors Brand Name :Â Â Blackburn Type :Â Â Split-Bolt Special Features :Â Â Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Spacer and washer of tin plated electrolytic copper. Application :Â Â Splicing, tapping or terminating conductors in power and grounding electrical connection. Standard :Â Â UL E9809 Material :Â Â Copper Alloy Finish :Â Â Electro Tin-Plated European Specifications (ETIM)
ETIM :Â Â EC000491 Earth terminal clamp Suitable for :Â Â Round conductor Material :Â Â Copper - Downloads
Spec SheetTechnical Drawing / Spec Sheet USTechnical Drawing / Spec Sheet Canada
