Ring Terminal
MFG #204217
$4.72Â /Â E
EACH
EACH
Product Description:

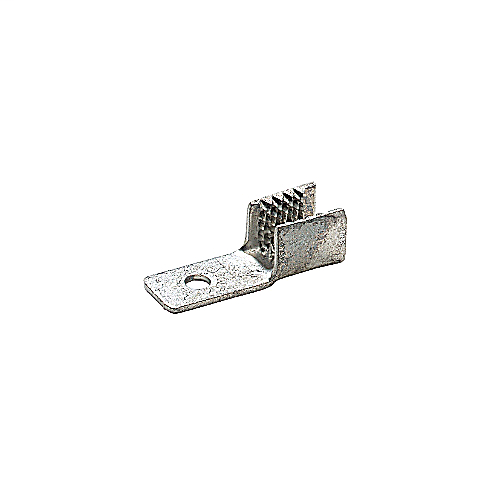

Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .50 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 10, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated
HESCO Part Number
TB204217
UPC
78621086764
Manufacturer Part Number
204217
Manufacturer
Thomas & Betts
Ring Terminal
MFG #204217
Product Description:
Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .50 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 10, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated
HESCO Part Number
TB204217
UPC
78621086764
Manufacturer Part Number
204217
Manufacturer
Thomas & Betts
$4.72Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Packaging
| Inner Quantity | :Â Â | 100 |
| Inner Dimensions (inches) | :Â Â | 5x4.5x3 |
| Outer Quantity | :Â Â | 500 |
| Outer Dimensions (inches) | :Â Â | 10.4x8.9x7.1 |
| Weight Uom | :Â Â | 2.69 lbs. per 100 |
European Specifications (ETIM) | ||
| ETIM | :Â Â | EC001059 Crimp splices for copper conductor |
| AWG-range | :Â Â | 12-4 |
| Model | :Â Â | Standard version |
| Sleeve form | :Â Â | Short |
| Suitable for solid cores | :Â Â | N |
| Useful for stranded conductors | :Â Â | N |
| Suitable for fine strand conductors | :Â Â | N |
| Suitable for insulated varnish | :Â Â | Y |
| Suitable for round conductors | :Â Â | Y |
| Suitable for flat conductors | :Â Â | Y |
| Material | :Â Â | Copper |
| Surface protection | :Â Â | Tinned |
| Insulation | :Â Â | None |
| Voltage row | :Â Â | Up to 600 V |
| Type of connection | :Â Â | End connector |
| Oil stop/centre bar | :Â Â | N |
North American Specifications (UNSPSC) | ||
| UNSPSC | :Â Â | 39121432 Electrical terminals |
| IGCC | :Â Â | 4603 Electrical terminals |
| Brand Name | :Â Â | Dragon Tooth |
| Type | :Â Â | Ring Terminal |
| Special Features | :Â Â | Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. |
| Application | :Â Â | For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. |
| Standard | :Â Â | UL E9809 |
| Material | :Â Â | Copper |
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Packaging
Inner Quantity :Â Â 100 Inner Dimensions (inches) :Â Â 5x4.5x3 Outer Quantity :Â Â 500 Outer Dimensions (inches) :Â Â 10.4x8.9x7.1 Weight Uom :Â Â 2.69 lbs. per 100 European Specifications (ETIM)
ETIM :Â Â EC001059 Crimp splices for copper conductor AWG-range :Â Â 12-4 Model :Â Â Standard version Sleeve form :Â Â Short Suitable for solid cores :Â Â N Useful for stranded conductors :Â Â N Suitable for fine strand conductors :Â Â N Suitable for insulated varnish :Â Â Y Suitable for round conductors :Â Â Y Suitable for flat conductors :Â Â Y Material :Â Â Copper Surface protection :Â Â Tinned Insulation :Â Â None Voltage row :Â Â Up to 600 V Type of connection :Â Â End connector Oil stop/centre bar :Â Â N North American Specifications (UNSPSC)
UNSPSC :Â Â 39121432 Electrical terminals IGCC :Â Â 4603 Electrical terminals Brand Name :Â Â Dragon Tooth Type :Â Â Ring Terminal Special Features :Â Â Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. Application :Â Â For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. Standard :Â Â UL E9809 Material :Â Â Copper - Downloads
Spec SheetTechnical Drawing / Data Sheet USInstruction Sheet
