RING TERM CU 14-10 AWG NO8 STUD
MFG #210219
$3.05Â /Â E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

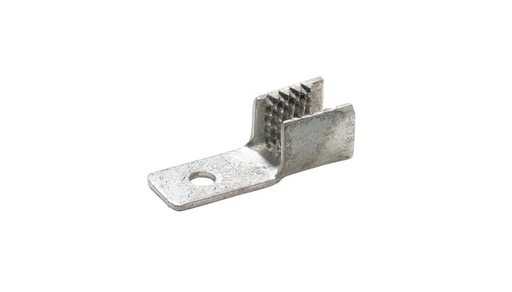

Insulation Piercing Magnet Wire Ring Terminal, Length 1.22 Inches, Width .41 Inches, Length of Teeth .56 Inches, Width of Teeth .38 Inches, Stud Size 8, Wire Range #14 AWG - #10 AWG 4,110 Circular Mil Area - 20,760 Circular Mil Area, Copper Alloy, Tin Plated
HESCO Part Number
TB210219
UPC
786210839653
Manufacturer Part Number
210219
Manufacturer
Thomas & Betts
RING TERM CU 14-10 AWG NO8 STUD
MFG #210219
Product Description:
Insulation Piercing Magnet Wire Ring Terminal, Length 1.22 Inches, Width .41 Inches, Length of Teeth .56 Inches, Width of Teeth .38 Inches, Stud Size 8, Wire Range #14 AWG - #10 AWG 4,110 Circular Mil Area - 20,760 Circular Mil Area, Copper Alloy, Tin Plated
HESCO Part Number
TB210219
UPC
786210839653
Manufacturer Part Number
210219
Manufacturer
Thomas & Betts
$3.05Â /Â E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Specifications
Ordering
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Additional Information | ||
| Application | :Â Â | For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. |
| Brand / Label | :Â Â | Sta-Kon |
| Effective Date | :Â Â | 19720711 |
| Material | :Â Â | Copper |
| Product Name | :Â Â | STA-KON AND CATAMOUNT TERMINAL |
| Product Type | :Â Â | Ring Terminal |
| Special Functions | :Â Â | Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. |
| Standards | :Â Â | UL E9809 |
| Sub Brand / Label | :Â Â | Dragon Tooth |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4603 >> Electrical terminals |
Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each Additional Information
Application :Â Â For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. Brand / Label :Â Â Sta-Kon Effective Date :Â Â 19720711 Material :Â Â Copper Product Name :Â Â STA-KON AND CATAMOUNT TERMINAL Product Type :Â Â Ring Terminal Special Functions :Â Â Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. Standards :Â Â UL E9809 Sub Brand / Label :Â Â Dragon Tooth Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4603 >> Electrical terminals
