FORK TERM CU 16-12 AWG NO6 STUD
MFG #22F066
$1.28Â /Â E
EACH
EACH
Product Description:

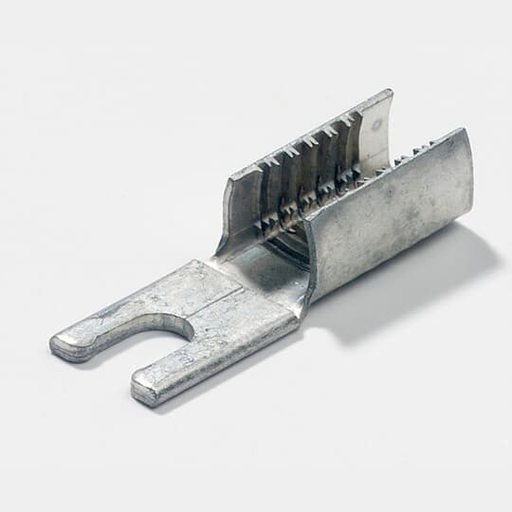

Insulation Piercing Magnet Wire Fork Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 6, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated
HESCO Part Number
TB22F066
UPC
786210837505
Manufacturer Part Number
22F066
Manufacturer
Thomas & Betts
FORK TERM CU 16-12 AWG NO6 STUD
MFG #22F066
Product Description:
Insulation Piercing Magnet Wire Fork Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 6, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated
HESCO Part Number
TB22F066
UPC
786210837505
Manufacturer Part Number
22F066
Manufacturer
Thomas & Betts
$1.28Â /Â E
EACH
EACH
- Specifications
Additional Information
| Application | :Â Â | For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. |
| Brand / Label | :Â Â | Sta-Kon |
| Effective Date | :Â Â | 19791127 |
| Material | :Â Â | Copper |
| Product Name | :Â Â | ELECTRICAL TERMINAL |
| Product Type | :Â Â | Fork Terminal |
| Special Functions | :Â Â | Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. |
| Standards | :Â Â | UL E9809 |
| Sub Brand / Label | :Â Â | Dragon Tooth |
Ordering | ||
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4603 >> Electrical terminals |
Additional Information
Application :Â Â For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. Brand / Label :Â Â Sta-Kon Effective Date :Â Â 19791127 Material :Â Â Copper Product Name :Â Â ELECTRICAL TERMINAL Product Type :Â Â Fork Terminal Special Functions :Â Â Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. Standards :Â Â UL E9809 Sub Brand / Label :Â Â Dragon Tooth Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4603 >> Electrical terminals
