Thomas & Betts

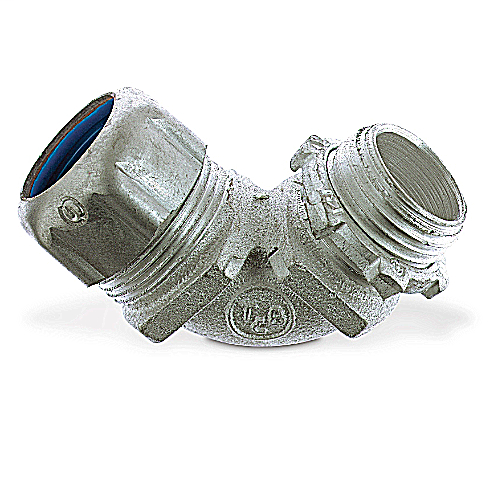

Connectors-90 Degree
MFG #5254AL
$157.07 / E
EACH
EACH
Product Description:
1 Inch 90 Degree Aluminum Liquidtight Connector, Non-insulated
HESCO Part Number
TB5254AL
UPC
78621080256
Manufacturer Part Number
5254AL
Manufacturer
Thomas & Betts
Thomas & Betts
Connectors-90 Degree
MFG #5254AL
Product Description:
1 Inch 90 Degree Aluminum Liquidtight Connector, Non-insulated
HESCO Part Number
TB5254AL
UPC
78621080256
Manufacturer Part Number
5254AL
Manufacturer
Thomas & Betts
$157.07 / E
EACH
EACH
- Specifications
- Resources
European Specifications (ETIM)
| ETIM | : | EC001180 Screw connection for protective metallic hose |
| Nominal size in inch | : | 1 inch |
| Model | : | 90°-elbow |
| Revolving thread | : | N |
| Construction type | : | External thread |
| Connection type screw connection to housing | : | Thread |
| Thread type | : | NPT |
| Thread connection size | : | Other |
| One-piece | : | N |
| Material housing | : | Other |
| Surface protection | : | Zinc coated |
| Thread length | : | 19.05mm |
| Approved in combination with protective conduit CSA | : | Y |
| Approved in combination with protective conduit UL | : | Y |
North American Specifications (UNSPSC) | ||
| UNSPSC | : | 39121420 Liquid tight connectors |
| IGCC | : | 4585 Liquid tight connectors |
| Brand Name | : | T&B |
| Type | : | Connectors-90 Degree |
| Application | : | High-quality, corrosion-resistant, liquidtight termination for LTA flexible aluminum conduit. |
| Standard | : | UL E23018, CSA |
| Size | : | 1 Inch |
| Material | : | Aluminum |
| Finish | : | Zinc Plating/Clear Chromate |
Packaging | ||
| Inner Quantity | : | 5 |
| Inner Dimensions (inches) | : | 6x4.5x3 |
| Outer Quantity | : | 25 |
| Outer Dimensions (inches) | : | 4.4x24.5x6.7 |
| Weight Uom | : | 25.5 lbs. per 100 |
European Specifications (ETIM)
ETIM : EC001180 Screw connection for protective metallic hose Nominal size in inch : 1 inch Model : 90°-elbow Revolving thread : N Construction type : External thread Connection type screw connection to housing : Thread Thread type : NPT Thread connection size : Other One-piece : N Material housing : Other Surface protection : Zinc coated Thread length : 19.05mm Approved in combination with protective conduit CSA : Y Approved in combination with protective conduit UL : Y North American Specifications (UNSPSC)
UNSPSC : 39121420 Liquid tight connectors IGCC : 4585 Liquid tight connectors Brand Name : T&B Type : Connectors-90 Degree Application : High-quality, corrosion-resistant, liquidtight termination for LTA flexible aluminum conduit. Standard : UL E23018, CSA Size : 1 Inch Material : Aluminum Finish : Zinc Plating/Clear Chromate Packaging
Inner Quantity : 5 Inner Dimensions (inches) : 6x4.5x3 Outer Quantity : 25 Outer Dimensions (inches) : 4.4x24.5x6.7 Weight Uom : 25.5 lbs. per 100 - Downloads
Technical Drawing / Spec SheetSpec SheetTechnical Drawing / Spec Sheet CanadaCatalog US
