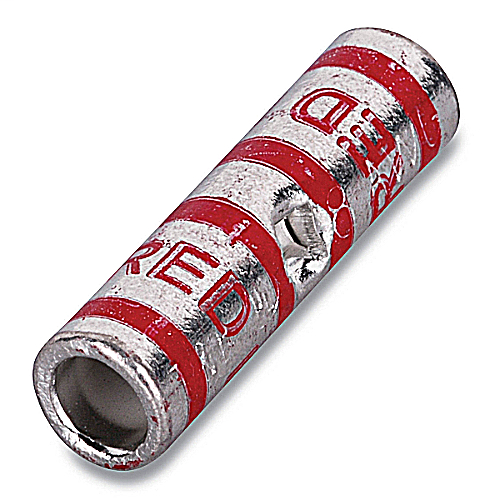

Splice Connector
MFG #54522-TB
$130.17Â /Â e
EACH
EACH
Product Description:
Copper Two-Way Splice - Short Barrel for 700 kcmil, Die Code 99 Pink
HESCO Part Number
TB54522TB
UPC
78621054522
Manufacturer Part Number
54522-TB
Manufacturer
Thomas & Betts
Splice Connector
MFG #54522-TB
Product Description:
Copper Two-Way Splice - Short Barrel for 700 kcmil, Die Code 99 Pink
HESCO Part Number
TB54522TB
UPC
78621054522
Manufacturer Part Number
54522-TB
Manufacturer
Thomas & Betts
$130.17Â /Â e
EACH
EACH
- Features
- Specifications
- Resources
- Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
- UL
- CSA
Dimension Information
| A (inches) | :Â Â | 3.25 |
| E (inches) | :Â Â | 1.23 |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Packaging | ||
| Inner Package | :Â Â | 6 |
| Outer Package | :Â Â | 60 |
| T&B Weight Per UOM | :Â Â | 43.31 lbs. per 100 |
| Package Height | :Â Â | 3.5 |
| Package Length | :Â Â | 21.5 |
| Package Width | :Â Â | 8.5 |
| T&B Sold in UOM | :Â Â | Each |
General | ||
| Wire Size | :Â Â | 700 kcmil |
| Die Code | :Â Â | 99 |
| Finish | :Â Â | Tin-Plated |
| Material | :Â Â | Copper |
| Style | :Â Â | Two-Way Standard Barrel Splice |
| Die Color | :Â Â | Pink |
Specifications | ||
| Voltage Rating | :Â Â | 600V |
- Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
- UL
- CSA
Dimension Information
A (inches) :Â Â 3.25 E (inches) :Â Â 1.23 Certifications
RoHS Compliance :Â Â Yes Packaging
Inner Package :Â Â 6 Outer Package :Â Â 60 T&B Weight Per UOM :Â Â 43.31 lbs. per 100 Package Height :Â Â 3.5 Package Length :Â Â 21.5 Package Width :Â Â 8.5 T&B Sold in UOM :Â Â Each General
Wire Size :Â Â 700 kcmil Die Code :Â Â 99 Finish :Â Â Tin-Plated Material :Â Â Copper Style :Â Â Two-Way Standard Barrel Splice Die Color :Â Â Pink Specifications
Voltage Rating :Â Â 600V - Certifications
RoHS Compliance
Application SupportT&B Instruction Sheets
