Recessed Service
MFG #665-AV2
$817.65Â /Â E
EACH
EACH

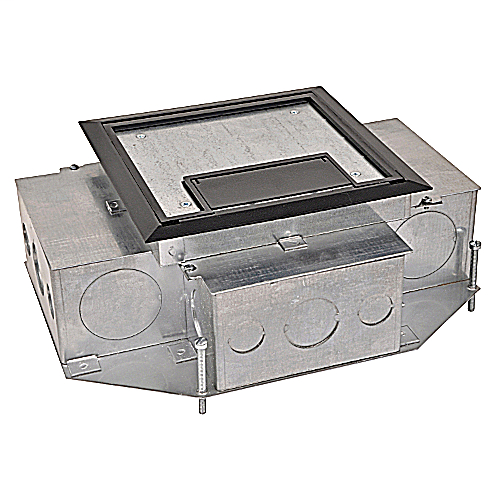

Product Description:
Four Gang Recessed Service Floor Box, 124 Cubic Inches for Device Access and 72/52 Cubic Inches for Device Compartments, Length 12-1/8 Inches, Width 14 Inches, Depth 4-1/2 Inches, Compartment Size Length 5-3/4 Inches Width 3-3/4 and 2-1/4 Inches and Depth 3-3/8 Inches, 3/4 Inch, 1-1/4 Inch, and 2 Inch Knockouts, Cast Iron, For Audio Visual Applications
HESCO Part Number
STC665AV2
UPC
78599104895
Manufacturer Part Number
665-AV2
Manufacturer
Thomas & Betts
Recessed Service
MFG #665-AV2
Product Description:
Four Gang Recessed Service Floor Box, 124 Cubic Inches for Device Access and 72/52 Cubic Inches for Device Compartments, Length 12-1/8 Inches, Width 14 Inches, Depth 4-1/2 Inches, Compartment Size Length 5-3/4 Inches Width 3-3/4 and 2-1/4 Inches and Depth 3-3/8 Inches, 3/4 Inch, 1-1/4 Inch, and 2 Inch Knockouts, Cast Iron, For Audio Visual Applications
HESCO Part Number
STC665AV2
UPC
78599104895
Manufacturer Part Number
665-AV2
Manufacturer
Thomas & Betts
$817.65Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 2 inch knockouts allow pre-terminated AV cables and connectors to be pulled directly through the conduit
- Accepts standard 665 series covers and device plates for power, voice, data and audio visual connections
North American Specifications (UNSPSC)
| UNSPSC | :Â Â | 39121307 Floor boxes |
| IGCC | :Â Â | 4432 Floor boxes |
| Brand Name | :Â Â | Steel City |
| Type | :Â Â | Recessed Service |
| Special Features | :Â Â | 2 inch knockouts allow pre-terminated AV cables and connectors to be pulled directly through the conduit |
| Application | :Â Â | Recessed service with 4 compartments for power and audio visual applications |
| Material | :Â Â | Stamped Steel |
| Cubic Capacity | :Â Â | 124 |
| Knockouts | :Â Â | 28 |
European Specifications (ETIM) | ||
| ETIM | :Â Â | EC000024 Installation box for underfloor-installation |
| Cover model | :Â Â | Rectangular |
| Suitable for wet cleaning | :Â Â | Y |
| Suitable for hollow floor | :Â Â | Y |
| Material | :Â Â | Other |
| With opening carpeting | :Â Â | N |
| Min. built-in depth | :Â Â | 4.5mm |
| Colour | :Â Â | Other |
| Length external dimension | :Â Â | 307.975mm |
| Width outside dimension | :Â Â | 355.6mm |
Packaging | ||
| Outer Quantity | :Â Â | 1 |
| Outer Dimensions (inches) | :Â Â | 12.12x.94x14 |
| Weight Uom | :Â Â | 12.89 lbs. Each |
- 2 inch knockouts allow pre-terminated AV cables and connectors to be pulled directly through the conduit
- Accepts standard 665 series covers and device plates for power, voice, data and audio visual connections
North American Specifications (UNSPSC)
UNSPSC :Â Â 39121307 Floor boxes IGCC :Â Â 4432 Floor boxes Brand Name :Â Â Steel City Type :Â Â Recessed Service Special Features :Â Â 2 inch knockouts allow pre-terminated AV cables and connectors to be pulled directly through the conduit Application :Â Â Recessed service with 4 compartments for power and audio visual applications Material :Â Â Stamped Steel Cubic Capacity :Â Â 124 Knockouts :Â Â 28 European Specifications (ETIM)
ETIM :Â Â EC000024 Installation box for underfloor-installation Cover model :Â Â Rectangular Suitable for wet cleaning :Â Â Y Suitable for hollow floor :Â Â Y Material :Â Â Other With opening carpeting :Â Â N Min. built-in depth :Â Â 4.5mm Colour :Â Â Other Length external dimension :Â Â 307.975mm Width outside dimension :Â Â 355.6mm Packaging
Outer Quantity :Â Â 1 Outer Dimensions (inches) :Â Â 12.12x.94x14 Weight Uom :Â Â 12.89 lbs. Each - Downloads
Spec SheetTechnical Drawing / Spec SheetTechnical Drawing / Spec Sheet Canada
