Disconnects
MFG #A18-111F
$2.07 / E
EACH
EACH
Product Description:

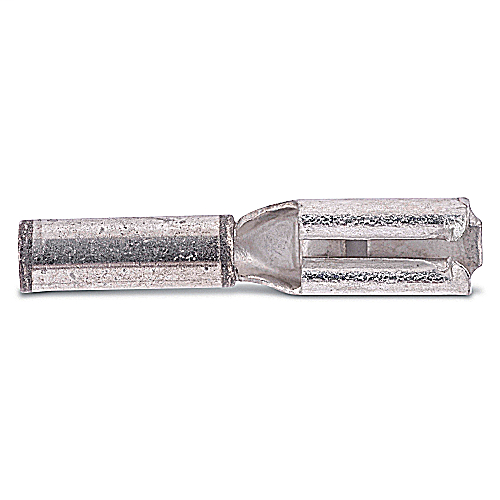

Non-Insulated Female Disconnect, Length .59 Inches, Width .15 Inches, Tab Size .110x.020, Wire Range #22-#18 AWG, Copper, Tin Plated
HESCO Part Number
TBA18111F
UPC
78621080227
Manufacturer Part Number
A18-111F
Manufacturer
Thomas & Betts
Disconnects
MFG #A18-111F
Product Description:
Non-Insulated Female Disconnect, Length .59 Inches, Width .15 Inches, Tab Size .110x.020, Wire Range #22-#18 AWG, Copper, Tin Plated
HESCO Part Number
TBA18111F
UPC
78621080227
Manufacturer Part Number
A18-111F
Manufacturer
Thomas & Betts
$2.07 / E
EACH
EACH
- Specifications
- Resources
Dimension Information
| A (inches) | : | .59 |
| Stock Thickness | : | .03 |
| B (inches) | : | .15 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Inner Package | : | 100 |
| Order Multiple | : | 100 |
| T&B Sold in UOM | : | Each |
| Package Type | : | Standard |
| Alternate Package Qty | : | A11 |
| T&B Weight Per UOM | : | 0.63 lbs. per 1000 |
| Package Height | : | 7 |
| Outer Package | : | 500 |
| Package Width | : | 9 |
| Package Length | : | 10.5 |
Tooling | ||
| Recommended Tool | : | WT111M |
General | ||
| Color | : | Metallic |
| Wire Range | : | 22-18 |
| Terminal Series | : | A |
| Material | : | Brass |
| Disconnect Type | : | Female - 110 Series |
| Finish | : | Electro Tin-Plated |
| Tab Size | : | .110 x .020 |
| Insulation Type | : | Non-Insulated |
Specifications | ||
| Voltage Rating | : | 600V |
| Flammability Rating | : | UL 94 V-0 |
| Temperature Rating | : | 150°C |
Dimension Information
A (inches) : .59 Stock Thickness : .03 B (inches) : .15 Certifications
RoHS Compliance : Yes Packaging
Inner Package : 100 Order Multiple : 100 T&B Sold in UOM : Each Package Type : Standard Alternate Package Qty : A11 T&B Weight Per UOM : 0.63 lbs. per 1000 Package Height : 7 Outer Package : 500 Package Width : 9 Package Length : 10.5 Tooling
Recommended Tool : WT111M General
Color : Metallic Wire Range : 22-18 Terminal Series : A Material : Brass Disconnect Type : Female - 110 Series Finish : Electro Tin-Plated Tab Size : .110 x .020 Insulation Type : Non-Insulated Specifications
Voltage Rating : 600V Flammability Rating : UL 94 V-0 Temperature Rating : 150°C - Certifications
RoHS Compliance
ToolingTool Charts
Application SupportWire Guide Tables
