Thomas & Betts

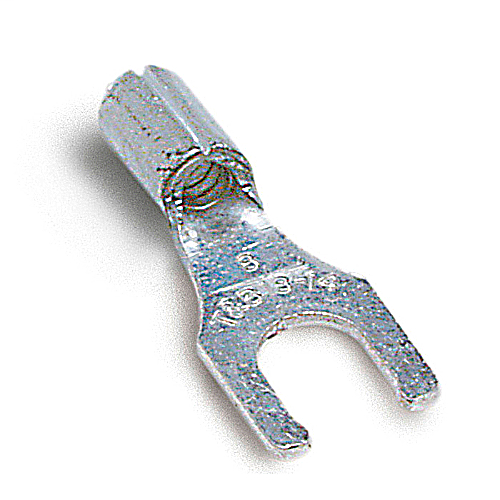

Locking Fork Terminal
MFG #A224
$0.52Â /Â E
EACH
EACH
Product Description:
Non-Insulated Locking Fork Terminal, Length .75 Inches, Width .29 Inches, Bolt Hole #8, Wire Range #22-#16 AWG, Copper, Tin Plated, 1,000 Pack
HESCO Part Number
TBA224
UPC
78621080848
Manufacturer Part Number
A224
Manufacturer
Thomas & Betts
Thomas & Betts
Locking Fork Terminal
MFG #A224
Product Description:
Non-Insulated Locking Fork Terminal, Length .75 Inches, Width .29 Inches, Bolt Hole #8, Wire Range #22-#16 AWG, Copper, Tin Plated, 1,000 Pack
HESCO Part Number
TBA224
UPC
78621080848
Manufacturer Part Number
A224
Manufacturer
Thomas & Betts
$0.52Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
- Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
- Alternate Package Qty: A18-8FL
European Specifications (ETIM)
| ETIM | :Â Â | EC001052 Solderless copper terminals for copper conductors |
| Flange shape | :Â Â | Fork shape |
| Insulation | :Â Â | None |
| Reel packaging | :Â Â | N |
| AWG-range | :Â Â | 22-16 |
| Material | :Â Â | Copper |
| Surface protection | :Â Â | Tinned |
North American Specifications (UNSPSC) | ||
| UNSPSC | :Â Â | 39121432 Electrical terminals |
| IGCC | :Â Â | 4603 Electrical terminals |
| Brand Name | :Â Â | Sta-Kon |
| Type | :Â Â | Locking Fork Terminal |
| Special Features | :Â Â | Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring. |
| Standard | :Â Â | UL E9809 |
| Wire Size | :Â Â | 22-16 AWG |
| Voltage Rating | :Â Â | 600V |
| Material | :Â Â | Copper |
| Color | :Â Â | Metallic |
Packaging | ||
| Inner Quantity | :Â Â | 1000 |
| Inner Dimensions (inches) | :Â Â | 3.5x3x3 |
| Outer Quantity | :Â Â | 10000 |
| Outer Dimensions (inches) | :Â Â | 16.3x6.7x4.2 |
| Weight Uom | :Â Â | 1.25 lbs. per 1000 |
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
- Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
- Alternate Package Qty: A18-8FL
European Specifications (ETIM)
ETIM :Â Â EC001052 Solderless copper terminals for copper conductors Flange shape :Â Â Fork shape Insulation :Â Â None Reel packaging :Â Â N AWG-range :Â Â 22-16 Material :Â Â Copper Surface protection :Â Â Tinned North American Specifications (UNSPSC)
UNSPSC :Â Â 39121432 Electrical terminals IGCC :Â Â 4603 Electrical terminals Brand Name :Â Â Sta-Kon Type :Â Â Locking Fork Terminal Special Features :Â Â Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring. Standard :Â Â UL E9809 Wire Size :Â Â 22-16 AWG Voltage Rating :Â Â 600V Material :Â Â Copper Color :Â Â Metallic Packaging
Inner Quantity :Â Â 1000 Inner Dimensions (inches) :Â Â 3.5x3x3 Outer Quantity :Â Â 10000 Outer Dimensions (inches) :Â Â 16.3x6.7x4.2 Weight Uom :Â Â 1.25 lbs. per 1000 - Downloads
Spec SheetTechnical Drawing / Spec Sheet USTechnical Drawing / Spec Sheet Canada
