Conduit Bodies, Covers & Gaskets
MFG #AC-4-RD
$68.40Â /Â E
EACH
EACH
Product Description:

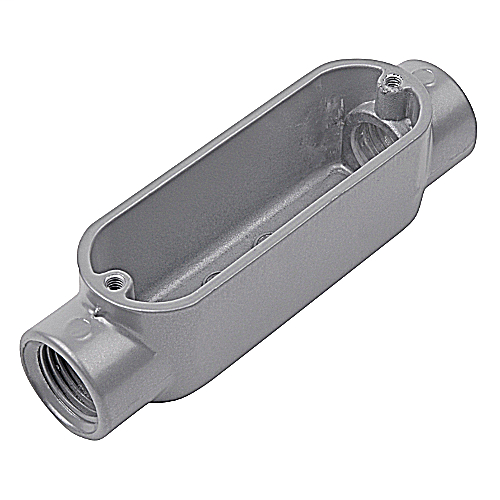

1-1/4 inch Threaded Die Cast Aluminum Thru-Feed Conduit Body. For Use with Rigid/IMC Conduit.
HESCO Part Number
REDAC4RD
UPC
04226930025
Manufacturer Part Number
AC-4-RD
Manufacturer
Thomas & Betts
Conduit Bodies, Covers & Gaskets
MFG #AC-4-RD
Product Description:
1-1/4 inch Threaded Die Cast Aluminum Thru-Feed Conduit Body. For Use with Rigid/IMC Conduit.
HESCO Part Number
REDAC4RD
UPC
04226930025
Manufacturer Part Number
AC-4-RD
Manufacturer
Thomas & Betts
$68.40Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Threaded conduit bodies maintain a weather resistant conduit system when used with covers and gaskets.
- For use with rigid/IMC conduit
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- UL
Dimension Information
| A (inches) | :Â Â | 7 1/4 |
| B (inches) | :Â Â | 7 7/8 |
| F (inches) | :Â Â | 3 17/32 |
| E (inches) | :Â Â | 4 3/16 |
| D (inches) | :Â Â | 2 1/2 |
| C (inches) | :Â Â | 2 1/2 |
| G (inches) | :Â Â | 1 3/8 |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Packaging | ||
| T&B Sold in UOM | :Â Â | Each |
| Package Length | :Â Â | 14.9 |
| Inner Package | :Â Â | 2 |
| Outer Package | :Â Â | 10 |
| Package Width | :Â Â | 9.8 |
| Package Height | :Â Â | 7.4 |
| Order Multiple | :Â Â | 2 |
| T&B Weight Per UOM | :Â Â | 1.71 lbs. Each |
General | ||
| Material | :Â Â | Die Cast Aluminum |
| Trade Size (inches) | :Â Â | 1-1/4 |
| Volume (cu.in.) | :Â Â | 32 |
Accessories & Components | ||
| D-Pak Catalog Number | :Â Â | DAC-4-CG |
| Cover-Die Cast | :Â Â | CV-4 |
| Gasket-Neoprene | :Â Â | GKN-4 |
| Gasket-Composition | :Â Â | GKV-4 |
| Cover-Stamped Aluminum | :Â Â | SCV-4 |
- Threaded conduit bodies maintain a weather resistant conduit system when used with covers and gaskets.
- For use with rigid/IMC conduit
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- UL
Dimension Information
A (inches) :Â Â 7 1/4 B (inches) :Â Â 7 7/8 F (inches) :Â Â 3 17/32 E (inches) :Â Â 4 3/16 D (inches) :Â Â 2 1/2 C (inches) :Â Â 2 1/2 G (inches) :Â Â 1 3/8 Certifications
RoHS Compliance :Â Â Yes Packaging
T&B Sold in UOM :Â Â Each Package Length :Â Â 14.9 Inner Package :Â Â 2 Outer Package :Â Â 10 Package Width :Â Â 9.8 Package Height :Â Â 7.4 Order Multiple :Â Â 2 T&B Weight Per UOM :Â Â 1.71 lbs. Each General
Material :Â Â Die Cast Aluminum Trade Size (inches) :Â Â 1-1/4 Volume (cu.in.) :Â Â 32 Accessories & Components
D-Pak Catalog Number :Â Â DAC-4-CG Cover-Die Cast :Â Â CV-4 Gasket-Neoprene :Â Â GKN-4 Gasket-Composition :Â Â GKV-4 Cover-Stamped Aluminum :Â Â SCV-4 - Application Support
