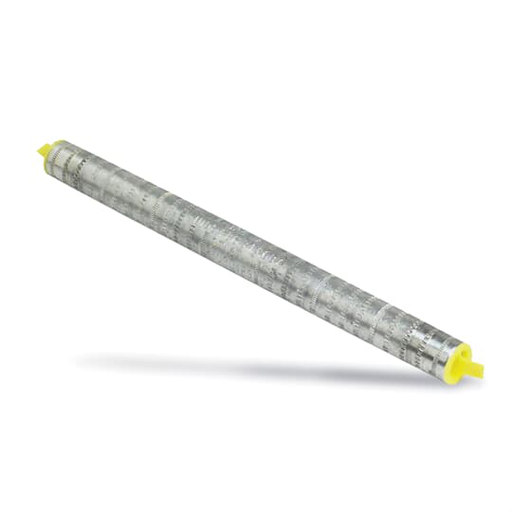

AL 9-1/2IN TENSION COMP SPLICE 4/0
MFG #AC40
$41.88Â /Â E
EACH
EACH
Product Description:
Aluminum 9-1/2 inch Full-Tension Distribution Compression Splice for Wire Range: 4/0 (7, 19), Mechanical Dies: BY37, W-249, 840, Hydraulic Dies: B49EA, 249, 840. For Aluminum Conductors.
HESCO Part Number
BLBAC40
UPC
783786051069
Manufacturer Part Number
AC40
Manufacturer
Thomas & Betts
AL 9-1/2IN TENSION COMP SPLICE 4/0
MFG #AC40
Product Description:
Aluminum 9-1/2 inch Full-Tension Distribution Compression Splice for Wire Range: 4/0 (7, 19), Mechanical Dies: BY37, W-249, 840, Hydraulic Dies: B49EA, 249, 840. For Aluminum Conductors.
HESCO Part Number
BLBAC40
UPC
783786051069
Manufacturer Part Number
AC40
Manufacturer
Thomas & Betts
$41.88Â /Â E
EACH
EACH
- Specifications
Additional Information
| Application | :Â Â | Distribution Compression Connector |
| Brand / Label | :Â Â | Blackburn |
| Connection Type | :Â Â | Compression |
| Effective Date | :Â Â | 19991027 |
| Insulation Material | :Â Â | None |
| Mounting Type | :Â Â | None |
| Number of Conductors | :Â Â | 2 |
| Product Name | :Â Â | AL TENSION SPLICE |
| Product Type | :Â Â | Compression Splice |
| Size | :Â Â | 9-1/2 inch |
| Special Functions | :Â Â | Center stop assures proper conductor positioning. External end taper provides conductor stress relief, ease of stringing and corona protection. Internal end chamfer allows easy conductor insertion and prevents sharp edge contact with conductor. |
| Standards | :Â Â | ANSI C119.4 |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4669 >> Wire or cable compression splice |
Ordering | ||
| Country of Origin | :Â Â | Mexico (MX) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Application :Â Â Distribution Compression Connector Brand / Label :Â Â Blackburn Connection Type :Â Â Compression Effective Date :Â Â 19991027 Insulation Material :Â Â None Mounting Type :Â Â None Number of Conductors :Â Â 2 Product Name :Â Â AL TENSION SPLICE Product Type :Â Â Compression Splice Size :Â Â 9-1/2 inch Special Functions :Â Â Center stop assures proper conductor positioning. External end taper provides conductor stress relief, ease of stringing and corona protection. Internal end chamfer allows easy conductor insertion and prevents sharp edge contact with conductor. Standards :Â Â ANSI C119.4 Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4669 >> Wire or cable compression splice Ordering
Country of Origin :Â Â Mexico (MX) Selling Unit of Measure :Â Â each
