Dual-Rated
MFG #ADR11-32
$73.09Â /Â E
(Must order in increments of 6/E)
(Must order in increments of 6/E)
Product Description:

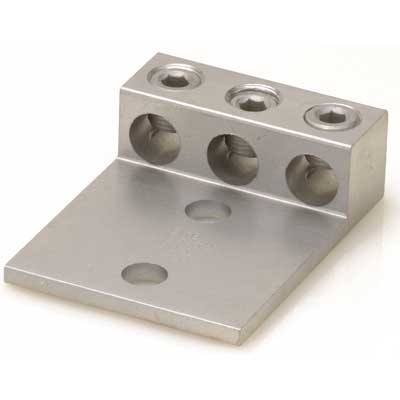

Type ADR-ALCUL Three-Conductor, Two-Hole Mount for Conductor Range Max 1/0 Str., Min 14 AWG
HESCO Part Number
BLBADR1132
UPC
78378661006
Manufacturer Part Number
ADR11-32
Manufacturer
Thomas & Betts
Dual-Rated
MFG #ADR11-32
Product Description:
Type ADR-ALCUL Three-Conductor, Two-Hole Mount for Conductor Range Max 1/0 Str., Min 14 AWG
HESCO Part Number
BLBADR1132
UPC
78378661006
Manufacturer Part Number
ADR11-32
Manufacturer
Thomas & Betts
$73.09Â /Â E
(Must order in increments of 6/E)
(Must order in increments of 6/E)
- Features
- Specifications
- Resources
- UL
- CSA
- Easy Installation - no special tools required.
- UL 486B tested, AL9CU rated
- Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
- NEMA spacing 1 inch centers.
Dimension Information
| Height (inches) | :Â Â | 7/8 |
| F (inches) | :Â Â | 1/4 |
| Length (inches) | :Â Â | 2-29/32 |
| I (inches) | :Â Â | 45/64 |
| G (inches) | :Â Â | 2 5/32 |
| D (inches) | :Â Â | 11/32 |
| E (inches) | :Â Â | 3/8 |
| Width (inches) | :Â Â | 1-15/16 |
Packaging | ||
| T&B Weight Per UOM | :Â Â | 22 lbs. per 100 |
| Outer Package | :Â Â | 60 |
| T&B Sold in UOM | :Â Â | Each |
| Package Length | :Â Â | 15 |
| Package Height | :Â Â | 5.75 |
| Inner Package | :Â Â | 6 |
| Package Width | :Â Â | 8.25 |
General | ||
| Conductor Range (AL or CU) Minimum | :Â Â | 14 AWG |
| Conductor Range (AL or CU) Maximum | :Â Â | 1/0 Str. |
| Material | :Â Â | Aluminum |
| Plating | :Â Â | Tin-Plated |
| Style | :Â Â | ALCUL Three-Conductor, Two-Hole Mount |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
- UL
- CSA
- Easy Installation - no special tools required.
- UL 486B tested, AL9CU rated
- Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
- NEMA spacing 1 inch centers.
Dimension Information
Height (inches) :Â Â 7/8 F (inches) :Â Â 1/4 Length (inches) :Â Â 2-29/32 I (inches) :Â Â 45/64 G (inches) :Â Â 2 5/32 D (inches) :Â Â 11/32 E (inches) :Â Â 3/8 Width (inches) :Â Â 1-15/16 Packaging
T&B Weight Per UOM :Â Â 22 lbs. per 100 Outer Package :Â Â 60 T&B Sold in UOM :Â Â Each Package Length :Â Â 15 Package Height :Â Â 5.75 Inner Package :Â Â 6 Package Width :Â Â 8.25 General
Conductor Range (AL or CU) Minimum :Â Â 14 AWG Conductor Range (AL or CU) Maximum :Â Â 1/0 Str. Material :Â Â Aluminum Plating :Â Â Tin-Plated Style :Â Â ALCUL Three-Conductor, Two-Hole Mount Certifications
RoHS Compliance :Â Â Yes - Certifications
RoHS Compliance
Application SupportT&B Sales Drawings
