Conduit Bodies, Covers & Gaskets
MFG #AT-3
$46.19Â /Â E
EACH
EACH
Product Description:

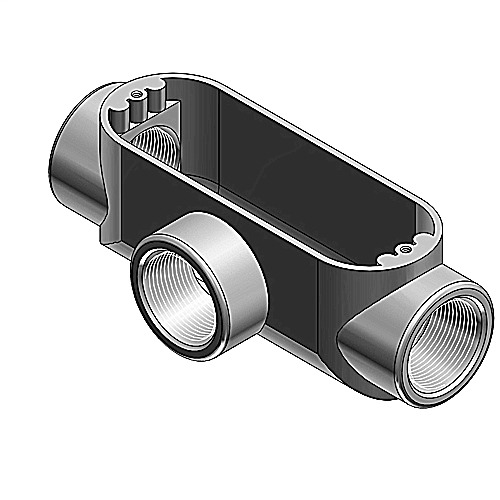

1 inch Threaded Die Cast Aluminum Conduit Body, T-Style. For Use with Rigid/IMC Conduit.
HESCO Part Number
REDAT3
UPC
04226932720
Manufacturer Part Number
AT-3
Manufacturer
Thomas & Betts
Conduit Bodies, Covers & Gaskets
MFG #AT-3
Product Description:
1 inch Threaded Die Cast Aluminum Conduit Body, T-Style. For Use with Rigid/IMC Conduit.
HESCO Part Number
REDAT3
UPC
04226932720
Manufacturer Part Number
AT-3
Manufacturer
Thomas & Betts
$46.19Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- UL
- Smooth throats for easy wire pulling
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- Retained stainless steel cover screws
- Threaded conduit bodies maintain a weather resistant conduit system when used with covers and gaskets.
- For use with rigid/IMC conduit
Dimension Information
| A (inches) | :Â Â | 5 3/8 |
| D (inches) | :Â Â | 1 7/8 |
| F (inches) | :Â Â | 2 5/8 |
| G (inches) | :Â Â | 1 |
| E (inches) | :Â Â | 3 1/2 |
| B (inches) | :Â Â | 5 15/16 |
| C (inches) | :Â Â | 1 3/4 |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Packaging | ||
| T&B Sold in UOM | :Â Â | Each |
| Package Width | :Â Â | 8.9 |
| Order Multiple | :Â Â | 5 |
| Package Length | :Â Â | 14.3 |
| T&B Weight Per UOM | :Â Â | 0.64 lbs. Each |
| Inner Package | :Â Â | 5 |
| Package Height | :Â Â | 11.9 |
| Outer Package | :Â Â | 25 |
General | ||
| Volume (cu.in.) | :Â Â | 11.8 |
| Trade Size (inches) | :Â Â | 1 |
| Material | :Â Â | Die Cast Aluminum |
Accessories & Components | ||
| Cover-Stamped Aluminum | :Â Â | SCV-3 |
| Gasket-Composition | :Â Â | GKV-3 |
| D-Pak Catalog Number | :Â Â | DAT-3-CG |
| Gasket-Neoprene | :Â Â | GKN-3 |
| Cover-Die Cast | :Â Â | CV-3 |
- UL
- Smooth throats for easy wire pulling
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- Retained stainless steel cover screws
- Threaded conduit bodies maintain a weather resistant conduit system when used with covers and gaskets.
- For use with rigid/IMC conduit
Dimension Information
A (inches) :Â Â 5 3/8 D (inches) :Â Â 1 7/8 F (inches) :Â Â 2 5/8 G (inches) :Â Â 1 E (inches) :Â Â 3 1/2 B (inches) :Â Â 5 15/16 C (inches) :Â Â 1 3/4 Certifications
RoHS Compliance :Â Â Yes Packaging
T&B Sold in UOM :Â Â Each Package Width :Â Â 8.9 Order Multiple :Â Â 5 Package Length :Â Â 14.3 T&B Weight Per UOM :Â Â 0.64 lbs. Each Inner Package :Â Â 5 Package Height :Â Â 11.9 Outer Package :Â Â 25 General
Volume (cu.in.) :Â Â 11.8 Trade Size (inches) :Â Â 1 Material :Â Â Die Cast Aluminum Accessories & Components
Cover-Stamped Aluminum :Â Â SCV-3 Gasket-Composition :Â Â GKV-3 D-Pak Catalog Number :Â Â DAT-3-CG Gasket-Neoprene :Â Â GKN-3 Cover-Die Cast :Â Â CV-3 - Application Support
