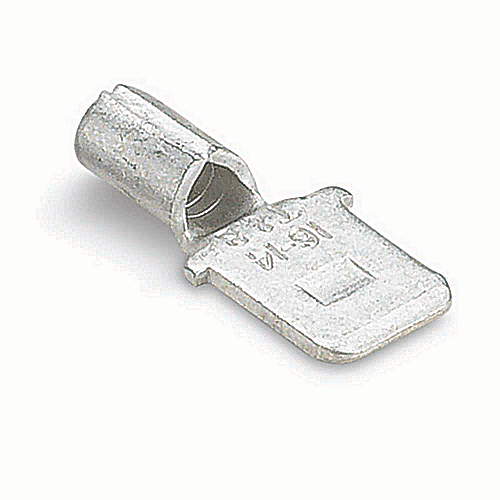

Male Tab
MFG #B14-251T
$1.58 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Non-Insulated Male - 250 Series Male Tabs For Wire Range 16-14 Length 0.68, Metallic
HESCO Part Number
TBB14251T
UPC
78621087415
Manufacturer Part Number
B14-251T
Manufacturer
Thomas & Betts
Male Tab
MFG #B14-251T
Product Description:
Non-Insulated Male - 250 Series Male Tabs For Wire Range 16-14 Length 0.68, Metallic
HESCO Part Number
TBB14251T
UPC
78621087415
Manufacturer Part Number
B14-251T
Manufacturer
Thomas & Betts
$1.58 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- CSA
- UL
Dimension Information
| A (inches) | : | .73 |
| Stock Thickness | : | .03 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Width | : | 9.4 |
| T&B Sold in UOM | : | Each |
| Alternate Package Qty | : | B251 |
| Outer Package | : | 500 |
| T&B Weight Per UOM | : | 2.5 lbs. per 1000 |
| Package Height | : | 9 |
| Inner Package | : | 100 |
| Package Length | : | 14.9 |
| Order Multiple | : | 100 |
| Package Type | : | Standard |
Tooling | ||
| Recommended Tool | : | ERG4002 |
General | ||
| Insulation Type | : | Non-Insulated |
| Tab Size | : | .250 x .032 |
| Terminal Series | : | B |
| Wire Range | : | 16-14 |
| Finish | : | Electro Tin-Plated |
| Color | : | Metallic |
| Style | : | Male - 250 Series |
| Material | : | Brass |
Specifications | ||
| Voltage Rating | : | 600V |
| Temperature Rating | : | 150°C |
| Flammability Rating | : | UL 94 V-0 |
- CSA
- UL
Dimension Information
A (inches) : .73 Stock Thickness : .03 Certifications
RoHS Compliance : Yes Packaging
Package Width : 9.4 T&B Sold in UOM : Each Alternate Package Qty : B251 Outer Package : 500 T&B Weight Per UOM : 2.5 lbs. per 1000 Package Height : 9 Inner Package : 100 Package Length : 14.9 Order Multiple : 100 Package Type : Standard Tooling
Recommended Tool : ERG4002 General
Insulation Type : Non-Insulated Tab Size : .250 x .032 Terminal Series : B Wire Range : 16-14 Finish : Electro Tin-Plated Color : Metallic Style : Male - 250 Series Material : Brass Specifications
Voltage Rating : 600V Temperature Rating : 150°C Flammability Rating : UL 94 V-0 - Certifications
RoHS Compliance
