Conduit Bodies, Covers & Gaskets
MFG #BC-2-RD
$57.69Â /Â E
EACH
EACH
Product Description:

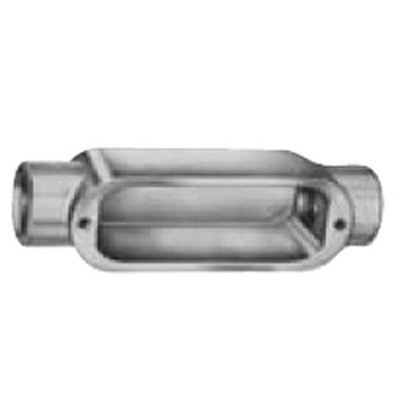

3/4 inch Set Screw Die Cast Aluminum Thru-Feed Conduit Body. For Use with EMT Conduit.
HESCO Part Number
REDBC2RD
UPC
04226933015
Manufacturer Part Number
BC-2-RD
Manufacturer
Thomas & Betts
Conduit Bodies, Covers & Gaskets
MFG #BC-2-RD
Product Description:
3/4 inch Set Screw Die Cast Aluminum Thru-Feed Conduit Body. For Use with EMT Conduit.
HESCO Part Number
REDBC2RD
UPC
04226933015
Manufacturer Part Number
BC-2-RD
Manufacturer
Thomas & Betts
$57.69Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- For use with EMT conduit
- UL
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
Dimension Information
| F (inches) | :Â Â | 2 11/32 |
| A (inches) | :Â Â | 4 5/8 |
| E (inches) | :Â Â | 2 25/32 |
| B (inches) | :Â Â | 5 1/8 |
| D (inches) | :Â Â | 1 5/8 |
| C (inches) | :Â Â | 1 17/32 |
| G (inches) | :Â Â | 15/16 |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Packaging | ||
| Outer Package | :Â Â | 50 |
| Inner Package | :Â Â | 10 |
| T&B Weight Per UOM | :Â Â | 0.36 lbs. Each |
| Package Height | :Â Â | 6.7 |
| T&B Sold in UOM | :Â Â | Each |
| Package Length | :Â Â | 17.3 |
| Package Width | :Â Â | 8.7 |
| Order Multiple | :Â Â | 10 |
General | ||
| Volume (cu.in.) | :Â Â | 7.3 |
| Material | :Â Â | Die Cast Aluminum |
| Trade Size (inches) | :Â Â | 3/4 |
Accessories & Components | ||
| Gasket-Composition | :Â Â | GKV-2 |
| Gasket-Neoprene | :Â Â | GKN-2 |
| Cover-Stamped Aluminum | :Â Â | SCV-2 |
| Cover-Die Cast | :Â Â | CV-2 |
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- For use with EMT conduit
- UL
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
Dimension Information
F (inches) :Â Â 2 11/32 A (inches) :Â Â 4 5/8 E (inches) :Â Â 2 25/32 B (inches) :Â Â 5 1/8 D (inches) :Â Â 1 5/8 C (inches) :Â Â 1 17/32 G (inches) :Â Â 15/16 Certifications
RoHS Compliance :Â Â Yes Packaging
Outer Package :Â Â 50 Inner Package :Â Â 10 T&B Weight Per UOM :Â Â 0.36 lbs. Each Package Height :Â Â 6.7 T&B Sold in UOM :Â Â Each Package Length :Â Â 17.3 Package Width :Â Â 8.7 Order Multiple :Â Â 10 General
Volume (cu.in.) :Â Â 7.3 Material :Â Â Die Cast Aluminum Trade Size (inches) :Â Â 3/4 Accessories & Components
Gasket-Composition :Â Â GKV-2 Gasket-Neoprene :Â Â GKN-2 Cover-Stamped Aluminum :Â Â SCV-2 Cover-Die Cast :Â Â CV-2 - Certifications
RoHS Compliance
