Conduit Bodies, Covers & Gaskets
MFG #BLB-10
$903.06Â /Â E
EACH
EACH
Product Description:

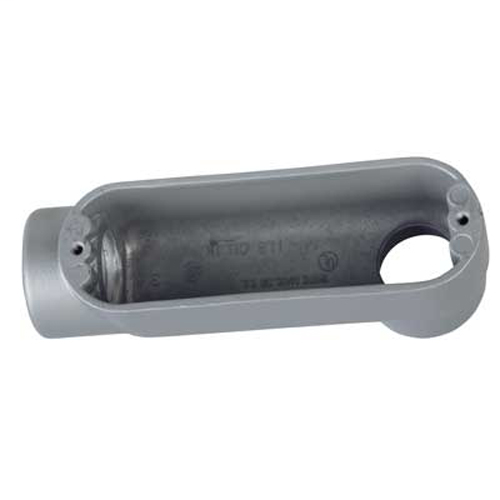

4 inch Set Screw Die Cast Aluminum Conduit Body with Back-Opening. For Use with EMT Conduit.
HESCO Part Number
REDBLB10
UPC
04226933350
Manufacturer Part Number
BLB-10
Manufacturer
Thomas & Betts
Conduit Bodies, Covers & Gaskets
MFG #BLB-10
Product Description:
4 inch Set Screw Die Cast Aluminum Conduit Body with Back-Opening. For Use with EMT Conduit.
HESCO Part Number
REDBLB10
UPC
04226933350
Manufacturer Part Number
BLB-10
Manufacturer
Thomas & Betts
$903.06Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- UL
- For use with EMT conduit
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- Shipped with 1-die cast aluminum cover
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
Dimension Information
| E (inches) | :Â Â | 13 1/2 |
| D (inches) | :Â Â | 5 9/16 |
| B (inches) | :Â Â | 16 5/16 |
| C (inches) | :Â Â | 5 1/2 |
| F (inches) | :Â Â | 6 15/16 |
| A (inches) | :Â Â | 15 |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Packaging | ||
| T&B Sold in UOM | :Â Â | Each |
| T&B Weight Per UOM | :Â Â | 8.9 lbs. Each |
| Package Width | :Â Â | 7.69 |
| Package Height | :Â Â | 6.69 |
| Package Length | :Â Â | 16.88 |
| Outer Package | :Â Â | 1 |
General | ||
| Material | :Â Â | Die Cast Aluminum |
| Trade Size (inches) | :Â Â | 4 |
| Volume (cu.in.) | :Â Â | 366 |
Accessories & Components | ||
| Gasket-Neoprene | :Â Â | GKN-7 |
| Cover-Die Cast | :Â Â | CV-7 |
| Gasket-Composition | :Â Â | GKV-7 |
- UL
- For use with EMT conduit
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices.
- Shipped with 1-die cast aluminum cover
- Smooth throats for easy wire pulling
- Retained stainless steel cover screws
Dimension Information
E (inches) :Â Â 13 1/2 D (inches) :Â Â 5 9/16 B (inches) :Â Â 16 5/16 C (inches) :Â Â 5 1/2 F (inches) :Â Â 6 15/16 A (inches) :Â Â 15 Certifications
RoHS Compliance :Â Â Yes Packaging
T&B Sold in UOM :Â Â Each T&B Weight Per UOM :Â Â 8.9 lbs. Each Package Width :Â Â 7.69 Package Height :Â Â 6.69 Package Length :Â Â 16.88 Outer Package :Â Â 1 General
Material :Â Â Die Cast Aluminum Trade Size (inches) :Â Â 4 Volume (cu.in.) :Â Â 366 Accessories & Components
Gasket-Neoprene :Â Â GKN-7 Cover-Die Cast :Â Â CV-7 Gasket-Composition :Â Â GKV-7 - Application Support
