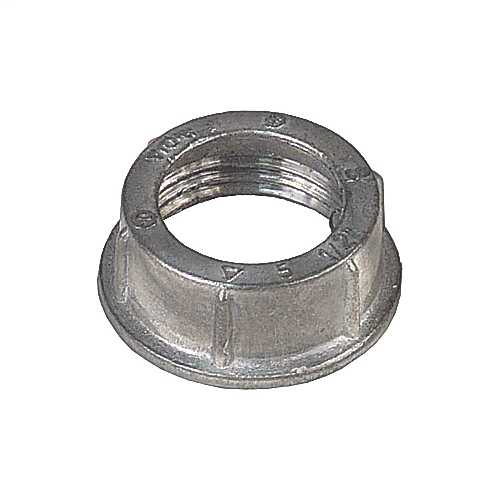

Bushing, Insulated Conduit
MFG #BU805
$25.01Â /Â E
EACH
EACH
Product Description:
Bushing, Insulated Conduit, Trade Size 1-1/2 Inch, Width 2.18 Inch, Thickness 0.60 Inch, Die-Cast Zinc, For use with Rigid/IMC Conduit
HESCO Part Number
STCBU805
UPC
78599190750
Manufacturer Part Number
BU805
Manufacturer
Thomas & Betts
Bushing, Insulated Conduit
MFG #BU805
Product Description:
Bushing, Insulated Conduit, Trade Size 1-1/2 Inch, Width 2.18 Inch, Thickness 0.60 Inch, Die-Cast Zinc, For use with Rigid/IMC Conduit
HESCO Part Number
STCBU805
UPC
78599190750
Manufacturer Part Number
BU805
Manufacturer
Thomas & Betts
$25.01Â /Â E
EACH
EACH
- Specifications
- Resources
European Specifications (ETIM)
| ETIM | :Â Â | EC002357 Support insulator |
| Outer diameter | :Â Â | 53.5686mm |
North American Specifications (UNSPSC) | ||
| UNSPSC | :Â Â | 39121312 Electrical bushing |
| IGCC | :Â Â | 4442 Electrical bushing |
| Brand Name | :Â Â | Steel City |
| Type | :Â Â | Bushing, Insulated Conduit |
| Special Features | :Â Â | 105 degree C thermoplastic liners, heavy reinforced ribs. |
| Application | :Â Â | For use with rigid/IMC conduits |
| Standard | :Â Â | UL e23018 |
| Size | :Â Â | 1-1/2 Inch |
| Material | :Â Â | Zinc Die Cast |
Packaging | ||
| Inner Quantity | :Â Â | 25 |
| Inner Dimensions (inches) | :Â Â | 6.3x4.5x2.8 |
| Outer Quantity | :Â Â | 250 |
| Weight Uom | :Â Â | 9.69 lbs. per 100 |
European Specifications (ETIM)
ETIM :Â Â EC002357 Support insulator Outer diameter :Â Â 53.5686mm North American Specifications (UNSPSC)
UNSPSC :Â Â 39121312 Electrical bushing IGCC :Â Â 4442 Electrical bushing Brand Name :Â Â Steel City Type :Â Â Bushing, Insulated Conduit Special Features :Â Â 105 degree C thermoplastic liners, heavy reinforced ribs. Application :Â Â For use with rigid/IMC conduits Standard :Â Â UL e23018 Size :Â Â 1-1/2 Inch Material :Â Â Zinc Die Cast Packaging
Inner Quantity :Â Â 25 Inner Dimensions (inches) :Â Â 6.3x4.5x2.8 Outer Quantity :Â Â 250 Weight Uom :Â Â 9.69 lbs. per 100 - Downloads
Spec SheetTechnical Drawing / Spec Sheet US
