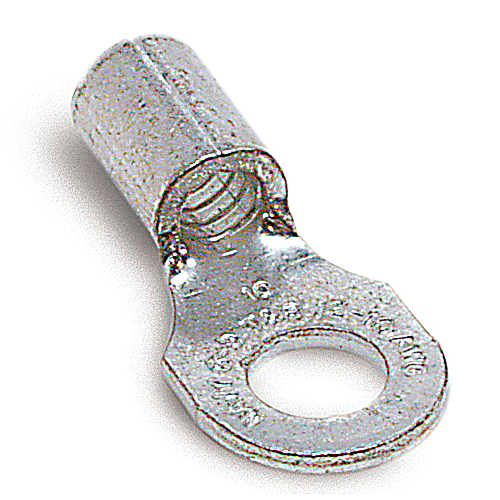

Ring Terminal
MFG #C10-516
$1.40 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
Non-Insulated Ring Terminal, Length .98 Inches, Width .50 Inches, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Copper, Tin Plated
HESCO Part Number
TBC10516
UPC
78621080355
Manufacturer Part Number
C10-516
Manufacturer
Thomas & Betts
Ring Terminal
MFG #C10-516
Product Description:
Non-Insulated Ring Terminal, Length .98 Inches, Width .50 Inches, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Copper, Tin Plated
HESCO Part Number
TBC10516
UPC
78621080355
Manufacturer Part Number
C10-516
Manufacturer
Thomas & Betts
$1.40 / E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Features
- Specifications
- Resources
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
- CSA
- UL
Dimension Information
| C (inches) | : | .38 |
| A (inches) | : | .98 |
| M (inches) | : | .73 |
| Stock Thickness | : | .04 |
| B (inches) | : | .50 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Width | : | 8.9 |
| Order Multiple | : | 50 |
| Package Type | : | Standard |
| Alternate Package Qty | : | C10-516 |
| T&B Weight Per UOM | : | 5.63 lbs. per 1000 |
| Package Height | : | 7.3 |
| Package Length | : | 10.5 |
| T&B Sold in UOM | : | Each |
| Inner Package | : | 50 |
| Outer Package | : | 250 |
Tooling | ||
| Recommended Tool | : | ERG4002, ERG4005 |
| Application Tools | : | WT110M, WT111M, WT112M, WT2000, ERG4002 |
General | ||
| Color | : | Metallic |
| Terminal Series | : | C |
| Wire Range | : | 12-10 |
| Material | : | Copper |
| Insulation Type | : | Non-Insulated |
| Finish | : | Electro Tin-Plated |
| Stud Size | : | 5/16 |
Specifications | ||
| Voltage Rating | : | 600V |
| Flammability Rating | : | UL 94 V-0 |
| Temperature Rating | : | 150°C |
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
- CSA
- UL
Dimension Information
C (inches) : .38 A (inches) : .98 M (inches) : .73 Stock Thickness : .04 B (inches) : .50 Certifications
RoHS Compliance : Yes Packaging
Package Width : 8.9 Order Multiple : 50 Package Type : Standard Alternate Package Qty : C10-516 T&B Weight Per UOM : 5.63 lbs. per 1000 Package Height : 7.3 Package Length : 10.5 T&B Sold in UOM : Each Inner Package : 50 Outer Package : 250 Tooling
Recommended Tool : ERG4002, ERG4005 Application Tools : WT110M, WT111M, WT112M, WT2000, ERG4002 General
Color : Metallic Terminal Series : C Wire Range : 12-10 Material : Copper Insulation Type : Non-Insulated Finish : Electro Tin-Plated Stud Size : 5/16 Specifications
Voltage Rating : 600V Flammability Rating : UL 94 V-0 Temperature Rating : 150°C - Application Support
