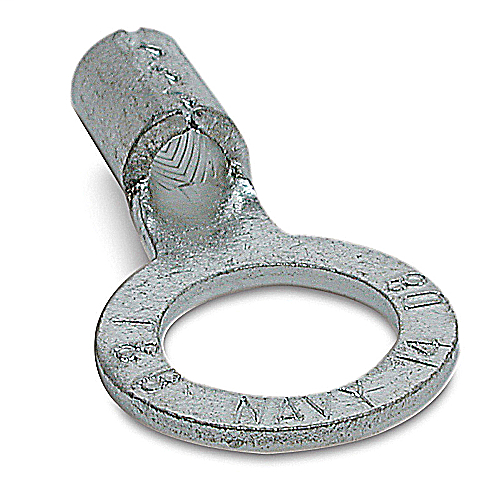

Ring Terminal
MFG #D8-10
$3.63 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:
Non-Insulated - Brazed Seam Ring Terminal For Wire Range 8 Stud Size #10, Metallic
HESCO Part Number
TBD810
UPC
78621080353
Manufacturer Part Number
D8-10
Manufacturer
Thomas & Betts
Ring Terminal
MFG #D8-10
Product Description:
Non-Insulated - Brazed Seam Ring Terminal For Wire Range 8 Stud Size #10, Metallic
HESCO Part Number
TBD810
UPC
78621080353
Manufacturer Part Number
D8-10
Manufacturer
Thomas & Betts
$3.63 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Features
- Specifications
- Resources
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
- Not available on Mylar Tape.
- CSA
- UL
Dimension Information
| Stock Thickness | : | .06 |
| M (inches) | : | .89 |
| A (inches) | : | 1.09 |
| B (inches) | : | .42 |
| C (inches) | : | .34 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Alternate Package Qty | : | D36 |
| T&B Sold in UOM | : | Each |
| Inner Package | : | 25 |
| Package Width | : | 9.4 |
| Package Height | : | 8.8 |
| Package Type | : | Standard |
| Package Length | : | 15 |
| Order Multiple | : | 25 |
| Outer Package | : | 125 |
| T&B Weight Per UOM | : | 1.31 lbs. per 100 |
Tooling | ||
| Recommended Tool | : | TBM6S |
| Application Tools | : | WT115A, TBM6, TBM6S, WT3185 |
General | ||
| Finish | : | Electro Tin-Plated |
| Terminal Series | : | D |
| Color | : | Metallic |
| Material | : | Copper |
| Insulation Type | : | Non-Insulated - Brazed Seam |
| Wire Range | : | 8 |
| Stud Size | : | #10 |
Specifications | ||
| Temperature Rating | : | 150°C |
| Voltage Rating | : | 600V |
| Flammability Rating | : | UL 94 V-0 |
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
- Not available on Mylar Tape.
- CSA
- UL
Dimension Information
Stock Thickness : .06 M (inches) : .89 A (inches) : 1.09 B (inches) : .42 C (inches) : .34 Certifications
RoHS Compliance : Yes Packaging
Alternate Package Qty : D36 T&B Sold in UOM : Each Inner Package : 25 Package Width : 9.4 Package Height : 8.8 Package Type : Standard Package Length : 15 Order Multiple : 25 Outer Package : 125 T&B Weight Per UOM : 1.31 lbs. per 100 Tooling
Recommended Tool : TBM6S Application Tools : WT115A, TBM6, TBM6S, WT3185 General
Finish : Electro Tin-Plated Terminal Series : D Color : Metallic Material : Copper Insulation Type : Non-Insulated - Brazed Seam Wire Range : 8 Stud Size : #10 Specifications
Temperature Rating : 150°C Voltage Rating : 600V Flammability Rating : UL 94 V-0 - Application Support
