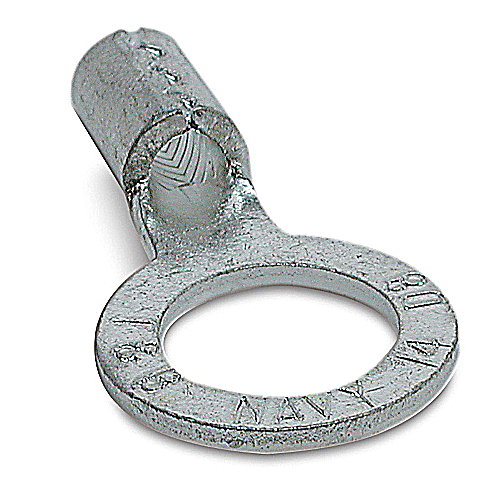

Ring Terminal
MFG #E6-12
$4.75 / E
(Must order in increments of 20/E)
(Must order in increments of 20/E)
Product Description:
Non-Insulated - Brazed Seam Ring Terminal For Wire Range 6 Stud Size 1/2, Metallic
HESCO Part Number
TBE612
UPC
78621087845
Manufacturer Part Number
E6-12
Manufacturer
Thomas & Betts
Ring Terminal
MFG #E6-12
Product Description:
Non-Insulated - Brazed Seam Ring Terminal For Wire Range 6 Stud Size 1/2, Metallic
HESCO Part Number
TBE612
UPC
78621087845
Manufacturer Part Number
E6-12
Manufacturer
Thomas & Betts
$4.75 / E
(Must order in increments of 20/E)
(Must order in increments of 20/E)
- Features
- Specifications
- Resources
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
- Not available on Mylar Tape.
- CSA
- UL
Dimension Information
| C (inches) | : | .55 |
| A (inches) | : | 1.49 |
| Stock Thickness | : | .06 |
| B (inches) | : | .82 |
| M (inches) | : | 1.08 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Inner Package | : | 20 |
| Package Length | : | 10.4 |
| T&B Weight Per UOM | : | 1.81 lbs. per 100 |
| Package Height | : | 7.1 |
| Alternate Package Qty | : | E75 |
| T&B Sold in UOM | : | Each |
| Package Type | : | Standard |
| Order Multiple | : | 20 |
| Outer Package | : | 100 |
| Package Width | : | 9 |
Tooling | ||
| Application Tools | : | WT115A, TBM6, TBM6S, WT3185 |
| Recommended Tool | : | TBM6S |
General | ||
| Terminal Series | : | E |
| Finish | : | Electro Tin-Plated |
| Wire Range | : | 6 |
| Color | : | Metallic |
| Material | : | Copper |
| Stud Size | : | 1/2 |
| Insulation Type | : | Non-Insulated - Brazed Seam |
Specifications | ||
| Flammability Rating | : | UL 94 V-0 |
| Voltage Rating | : | 600V |
| Temperature Rating | : | 150°C |
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
- Not available on Mylar Tape.
- CSA
- UL
Dimension Information
C (inches) : .55 A (inches) : 1.49 Stock Thickness : .06 B (inches) : .82 M (inches) : 1.08 Certifications
RoHS Compliance : Yes Packaging
Inner Package : 20 Package Length : 10.4 T&B Weight Per UOM : 1.81 lbs. per 100 Package Height : 7.1 Alternate Package Qty : E75 T&B Sold in UOM : Each Package Type : Standard Order Multiple : 20 Outer Package : 100 Package Width : 9 Tooling
Application Tools : WT115A, TBM6, TBM6S, WT3185 Recommended Tool : TBM6S General
Terminal Series : E Finish : Electro Tin-Plated Wire Range : 6 Color : Metallic Material : Copper Stud Size : 1/2 Insulation Type : Non-Insulated - Brazed Seam Specifications
Flammability Rating : UL 94 V-0 Voltage Rating : 600V Temperature Rating : 150°C - Certifications
RoHS Compliance
