Specialty Electrical Boxes
MFG #FN-23
$29.70Â /Â E
EACH
EACH
Product Description:

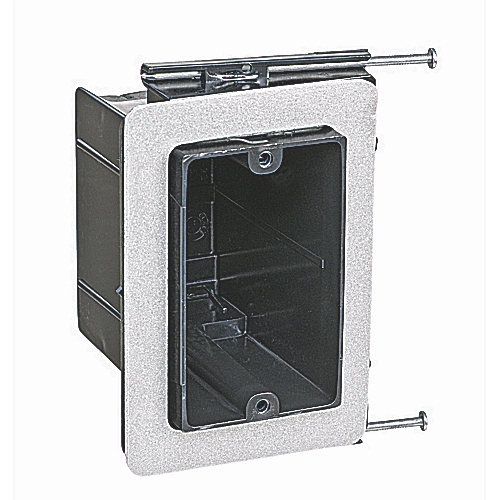

1-gang 22.5 cu.in. black polycarbonate vapor-tight wall box with angled side nails.
HESCO Part Number
STCFN23
UPC
78599102069
Manufacturer Part Number
FN-23
Manufacturer
Thomas & Betts
Specialty Electrical Boxes
MFG #FN-23
Product Description:
1-gang 22.5 cu.in. black polycarbonate vapor-tight wall box with angled side nails.
HESCO Part Number
STCFN23
UPC
78599102069
Manufacturer Part Number
FN-23
Manufacturer
Thomas & Betts
$29.70Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- UL
- Drywall flange covered with a foam gasket and additional gaskets over the cable entry points that provide a vapor-tight seal, preventing the free flow of air through the box.
- Angled side nails for rapid installation.
- 1/2 in. offset flange to ensure a flush fit in 1/2 in. drywall.
- High strength polycarbonate construction, will not shatter when cold or distort in heat.
- Pre-drilled flanges for additional mounting options.
Packaging
| Package Height | :Â Â | 12 |
| T&B Sold in UOM | :Â Â | Each |
| Package Width | :Â Â | 16 |
| Outer Package | :Â Â | 50 |
| T&B Weight Per UOM | :Â Â | 26 lbs. per 100 |
| Package Length | :Â Â | 20 |
General | ||
| Number of Gangs | :Â Â | 1 |
| Mounting Method | :Â Â | Angled side nails |
| Wiring System | :Â Â | Non-Metallic sheathed cable |
| Volume (cu.in.) | :Â Â | 22.5 |
| Color | :Â Â | Black |
| Material | :Â Â | Non-Metallic |
| Work | :Â Â | New |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Dimension Information | ||
| Depth (inches) | :Â Â | 3 5/8 |
| Width (inches) | :Â Â | 2-1/4 |
| Length (inches) | :Â Â | 3-5/8 |
- UL
- Drywall flange covered with a foam gasket and additional gaskets over the cable entry points that provide a vapor-tight seal, preventing the free flow of air through the box.
- Angled side nails for rapid installation.
- 1/2 in. offset flange to ensure a flush fit in 1/2 in. drywall.
- High strength polycarbonate construction, will not shatter when cold or distort in heat.
- Pre-drilled flanges for additional mounting options.
Packaging
Package Height :Â Â 12 T&B Sold in UOM :Â Â Each Package Width :Â Â 16 Outer Package :Â Â 50 T&B Weight Per UOM :Â Â 26 lbs. per 100 Package Length :Â Â 20 General
Number of Gangs :Â Â 1 Mounting Method :Â Â Angled side nails Wiring System :Â Â Non-Metallic sheathed cable Volume (cu.in.) :Â Â 22.5 Color :Â Â Black Material :Â Â Non-Metallic Work :Â Â New Certifications
RoHS Compliance :Â Â Yes Dimension Information
Depth (inches) :Â Â 3 5/8 Width (inches) :Â Â 2-1/4 Length (inches) :Â Â 3-5/8 - Application Support
Product Overview-Carlon Black PC Boxes
CertificationsRoHS Compliance
