Thomas & Betts
FS/FD Device Boxes & Covers-PVC Coated
MFG #FSC2-G
$198.52Â /Â e
EACH
EACH
Product Description:

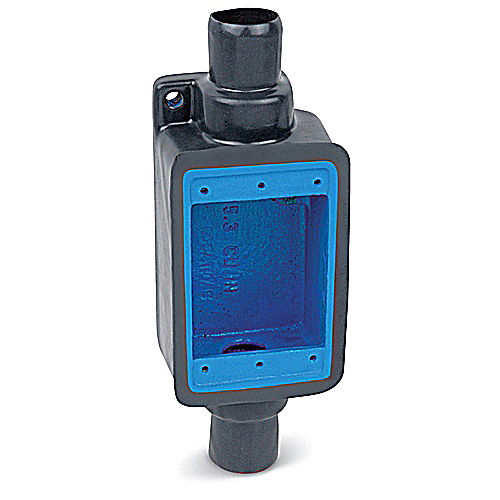

1-gang gray iron dark gray pvc coated shallow feed-thru device box, 3/4 in.
HESCO Part Number
TBFSC2G
UPC
70450837968
Manufacturer Part Number
FSC2-G
Manufacturer
Thomas & Betts
Thomas & Betts
FS/FD Device Boxes & Covers-PVC Coated
MFG #FSC2-G
Product Description:
1-gang gray iron dark gray pvc coated shallow feed-thru device box, 3/4 in.
HESCO Part Number
TBFSC2G
UPC
70450837968
Manufacturer Part Number
FSC2-G
Manufacturer
Thomas & Betts
$198.52Â /Â e
EACH
EACH
- Features
- Specifications
- Resources
- Dimensions are of uncoated fittings
- Metric size designator (ANSI C80. 1-1994)
- Provide openings to make splices and taps
- To accommodate wiring devices
- Act as pull boxes for conductors
- Provide access to conductors for maintenance and future system changes
- Pressure sealing sleeves protect connections with conduit
- Nominal .040 in. (40 mil) PVC coating bonded to exterior
- Coated with a nominal .002 in. (2 mil) blue urethane on both the interior and exterior before PVC coating is applied
- Cast class 30 gray iron alloy boxes
General
| Material | :Â Â | Gray Iron |
| Color | :Â Â | Dark Gray |
| Finish | :Â Â | PVC Coated |
| Style | :Â Â | Shallow |
Dimension Information | ||
| Size (inches) | :Â Â | 3/4 |
Packaging | ||
| Outer Package | :Â Â | 10 |
| Package Length | :Â Â | 14.5 |
| Package Width | :Â Â | 8 |
| Package Height | :Â Â | 8 |
| T&B Weight Per UOM | :Â Â | 2.65 lbs. Each |
| T&B Sold in UOM | :Â Â | Each |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Application Support
NEC Table 8
NEC 310-16 - Conductors for General Wiring
NEMA Standards-RN 1
Product Overview-Conduit Outlet Bodies
Ocal Specifications
Recommended Installation Procedures
Technical Information
Chemical Resistance Chart
Certifications
RoHS Compliance
