2-PC INNER SLV CONN BLUE I.D. 0.261
MFG #GSB261
$2.32Â /Â E
EACH
EACH
Product Description:

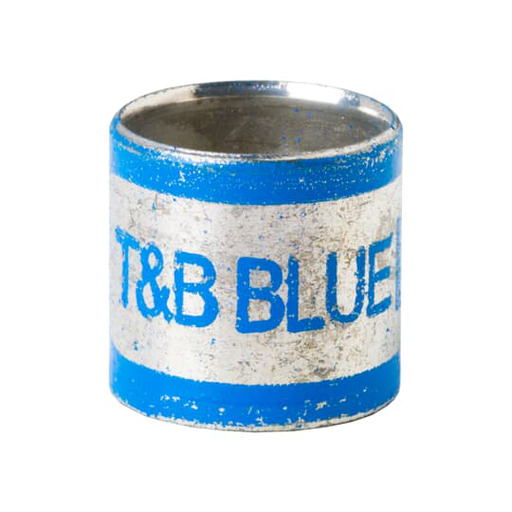

Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .261 Inches/6.63mm, Outer Diameter .297 Inches/7.54mm, Color Blue, Hard Bronze, Tin Plated
HESCO Part Number
TBGSB261
UPC
786210813202
Manufacturer Part Number
GSB261
Manufacturer
Thomas & Betts
2-PC INNER SLV CONN BLUE I.D. 0.261
MFG #GSB261
Product Description:
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .261 Inches/6.63mm, Outer Diameter .297 Inches/7.54mm, Color Blue, Hard Bronze, Tin Plated
HESCO Part Number
TBGSB261
UPC
786210813202
Manufacturer Part Number
GSB261
Manufacturer
Thomas & Betts
$2.32Â /Â E
EACH
EACH
- Specifications
Classifications
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4603 >> Electrical terminals |
Additional Information | ||
| Brand / Label | :Â Â | Sta-Kon |
| Color | :Â Â | Blue |
| Effective Date | :Â Â | 19680516 |
| Material | :Â Â | Hard Bronze |
| Product Name | :Â Â | STA-KON AND CATAMOUNT TERMINAL |
| Product Type | :Â Â | Two-Piece Inner Sleeve Connector |
| Special Functions | :Â Â | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications. |
| Sub Brand / Label | :Â Â | Shield-Kon |
Ordering | ||
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4603 >> Electrical terminals Additional Information
Brand / Label :Â Â Sta-Kon Color :Â Â Blue Effective Date :Â Â 19680516 Material :Â Â Hard Bronze Product Name :Â Â STA-KON AND CATAMOUNT TERMINAL Product Type :Â Â Two-Piece Inner Sleeve Connector Special Functions :Â Â Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications. Sub Brand / Label :Â Â Shield-Kon Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each
