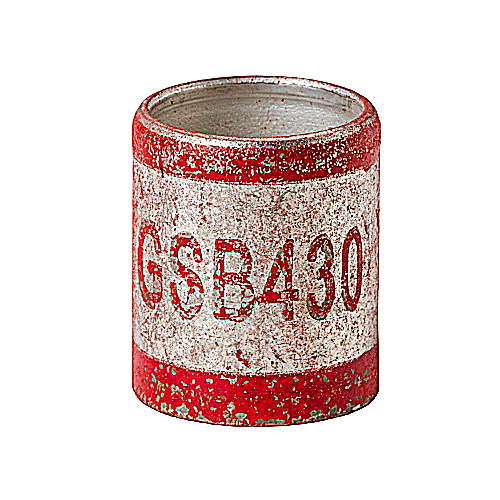

Two-Piece Inner Sleeve Connector
MFG #GSB430
$22.13Â /Â E
EACH
EACH
Product Description:
Two Piece Inner Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter 10.92mm, Outer Diameter 12.70mm, Color Red, Copper Alloy
HESCO Part Number
TBGSB430
UPC
78621081329
Manufacturer Part Number
GSB430
Manufacturer
Thomas & Betts
Two-Piece Inner Sleeve Connector
MFG #GSB430
Product Description:
Two Piece Inner Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter 10.92mm, Outer Diameter 12.70mm, Color Red, Copper Alloy
HESCO Part Number
TBGSB430
UPC
78621081329
Manufacturer Part Number
GSB430
Manufacturer
Thomas & Betts
$22.13Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables.
- The sleeves are color coded according to their size.
- Applications in communications, aerospace, and electronics.
North American Specifications (UNSPSC)
| UNSPSC | :Â Â | 39121432 Electrical terminals |
| IGCC | :Â Â | 4603 Electrical terminals |
| Brand Name | :Â Â | Shield-Kon |
| Type | :Â Â | Two-Piece Inner Sleeve Connector |
| Special Features | :Â Â | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables. The sleeves are color coded according to their size. Applications in communications, aerospace, and electronics. |
| Material | :Â Â | Copper Alloy |
| Color | :Â Â | Red |
European Specifications (ETIM) | ||
| ETIM | :Â Â | EC002650 Connection for screened wires |
| Model | :Â Â | 2-part |
| Sleeve form | :Â Â | Internal sleeve |
| Insulated | :Â Â | N |
| Outer diameter sleeve | :Â Â | 12.7mm |
| Inner diameter sleeve | :Â Â | 10.92mm |
| Sleeve length | :Â Â | 15.2mm |
| Colour code | :Â Â | Red |
| Compression shape | :Â Â | Round |
| Reel packaging | :Â Â | N |
Packaging | ||
| Inner Quantity | :Â Â | 50 |
| Inner Dimensions (inches) | :Â Â | 5x3x3.8 |
| Outer Quantity | :Â Â | 250 |
| Outer Dimensions (inches) | :Â Â | 3.125x7x9.75 |
| Weight Uom | :Â Â | 1.25 lbs. per 100 |
- Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables.
- The sleeves are color coded according to their size.
- Applications in communications, aerospace, and electronics.
North American Specifications (UNSPSC)
UNSPSC :Â Â 39121432 Electrical terminals IGCC :Â Â 4603 Electrical terminals Brand Name :Â Â Shield-Kon Type :Â Â Two-Piece Inner Sleeve Connector Special Features :Â Â Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables. The sleeves are color coded according to their size. Applications in communications, aerospace, and electronics. Material :Â Â Copper Alloy Color :Â Â Red European Specifications (ETIM)
ETIM :Â Â EC002650 Connection for screened wires Model :Â Â 2-part Sleeve form :Â Â Internal sleeve Insulated :Â Â N Outer diameter sleeve :Â Â 12.7mm Inner diameter sleeve :Â Â 10.92mm Sleeve length :Â Â 15.2mm Colour code :Â Â Red Compression shape :Â Â Round Reel packaging :Â Â N Packaging
Inner Quantity :Â Â 50 Inner Dimensions (inches) :Â Â 5x3x3.8 Outer Quantity :Â Â 250 Outer Dimensions (inches) :Â Â 3.125x7x9.75 Weight Uom :Â Â 1.25 lbs. per 100 - Downloads
Technical Drawing / Data Sheet USSpec Sheet
