2-PC OUTER SLVE CONN SLV I.D. 0.275
MFG #GSC275
$2.15Â /Â E
EACH
EACH

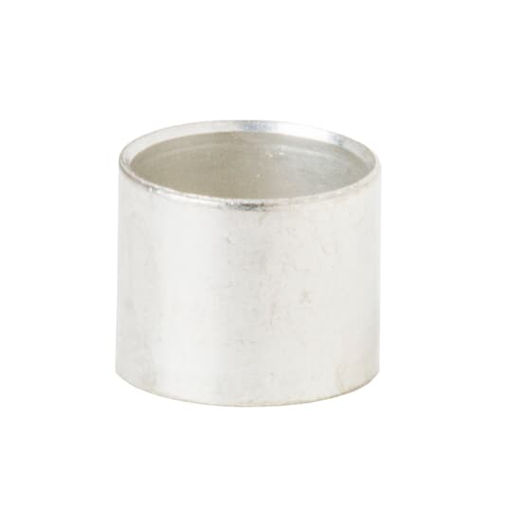

Product Description:
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .275 Inches/6.98mm, Outer Diameter .306 Inches/7.77mm, Color Silver, Soft Bronze, Tin Plated
HESCO Part Number
TBGSC275
UPC
786210813936
Manufacturer Part Number
GSC275
Manufacturer
Thomas & Betts
2-PC OUTER SLVE CONN SLV I.D. 0.275
MFG #GSC275
Product Description:
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .275 Inches/6.98mm, Outer Diameter .306 Inches/7.77mm, Color Silver, Soft Bronze, Tin Plated
HESCO Part Number
TBGSC275
UPC
786210813936
Manufacturer Part Number
GSC275
Manufacturer
Thomas & Betts
$2.15Â /Â E
EACH
EACH
- Specifications
Additional Information
| Brand / Label | :Â Â | Sta-Kon |
| Color | :Â Â | Gray |
| Effective Date | :Â Â | 19680516 |
| Material | :Â Â | Soft Bronze |
| Product Name | :Â Â | STA-KON AND CATAMOUNT TERMINAL |
| Product Type | :Â Â | Two-Piece Outer Sleeve Connector |
| Special Functions | :Â Â | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications. |
| Sub Brand / Label | :Â Â | Shield-Kon |
Ordering | ||
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4603 >> Electrical terminals |
Additional Information
Brand / Label :Â Â Sta-Kon Color :Â Â Gray Effective Date :Â Â 19680516 Material :Â Â Soft Bronze Product Name :Â Â STA-KON AND CATAMOUNT TERMINAL Product Type :Â Â Two-Piece Outer Sleeve Connector Special Functions :Â Â Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications. Sub Brand / Label :Â Â Shield-Kon Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4603 >> Electrical terminals
