AL SERV ENTR SPLICE A:2SLD B:4SLD
MFG #ICS67-1
$4.00Â /Â E
EACH
EACH
Product Description:

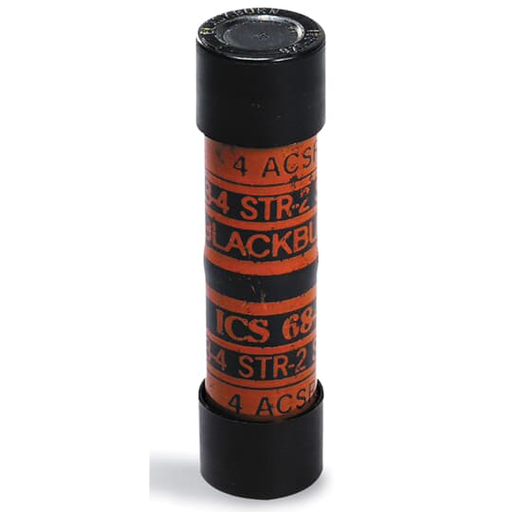

Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 4 ASCR, 3-4 Stranded, 2 Solid, Orange, End B: 6 ASCR, 6 Stranded, 4 Solid, Blue, Die: 5/8. For AL to AL and AL to CU Conductors.
HESCO Part Number
BLBICS671
UPC
783786102396
Manufacturer Part Number
ICS67-1
Manufacturer
Thomas & Betts
AL SERV ENTR SPLICE A:2SLD B:4SLD
MFG #ICS67-1
Product Description:
Aluminum 2-25/32 inch Service Entrance Compression Splice for Wire Range - End A: 4 ASCR, 3-4 Stranded, 2 Solid, Orange, End B: 6 ASCR, 6 Stranded, 4 Solid, Blue, Die: 5/8. For AL to AL and AL to CU Conductors.
HESCO Part Number
BLBICS671
UPC
783786102396
Manufacturer Part Number
ICS67-1
Manufacturer
Thomas & Betts
$4.00Â /Â E
EACH
EACH
- Specifications
Additional Information
| Application | :Â Â | For Standard Conductor Splice. |
| Brand / Label | :Â Â | Blackburn |
| Connection Type | :Â Â | Compression |
| Effective Date | :Â Â | 19991027 |
| Insulation Material | :Â Â | Yes |
| Mounting Type | :Â Â | None |
| Number of Conductors | :Â Â | 2 |
| Product Name | :Â Â | ELECTRICAL TERMINAL |
| Product Type | :Â Â | Compression Splice Service Entrance |
| Size | :Â Â | 2-25/32 inch |
| Special Functions | :Â Â | Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Tough Stabilized nylon sleebes resist installing tool Pressure and provide Reliable 600 V Insulation. Prefilled with Oxide Inhibitor to prevent Oxidation and keep out moisture. All Splices are Color Coded and Marked with trip lengths, Installation Die Codes and Compression Locations, Providing easy Identification for easy Installation. Splices have Colored End Caps to make Identification easy. |
| Standards | :Â Â | RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors. |
Ordering | ||
| Country of Origin | :Â Â | Mexico (MX) |
| Selling Unit of Measure | :Â Â | each |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4669 >> Wire or cable compression splice |
Additional Information
Application :Â Â For Standard Conductor Splice. Brand / Label :Â Â Blackburn Connection Type :Â Â Compression Effective Date :Â Â 19991027 Insulation Material :Â Â Yes Mounting Type :Â Â None Number of Conductors :Â Â 2 Product Name :Â Â ELECTRICAL TERMINAL Product Type :Â Â Compression Splice Service Entrance Size :Â Â 2-25/32 inch Special Functions :Â Â Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Tough Stabilized nylon sleebes resist installing tool Pressure and provide Reliable 600 V Insulation. Prefilled with Oxide Inhibitor to prevent Oxidation and keep out moisture. All Splices are Color Coded and Marked with trip lengths, Installation Die Codes and Compression Locations, Providing easy Identification for easy Installation. Splices have Colored End Caps to make Identification easy. Standards :Â Â RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors. Ordering
Country of Origin :Â Â Mexico (MX) Selling Unit of Measure :Â Â each Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4669 >> Wire or cable compression splice
