Device Boxes, Covers & Accessories
MFG #IHD3-1
$55.74Â /Â E
EACH
EACH
Product Description:

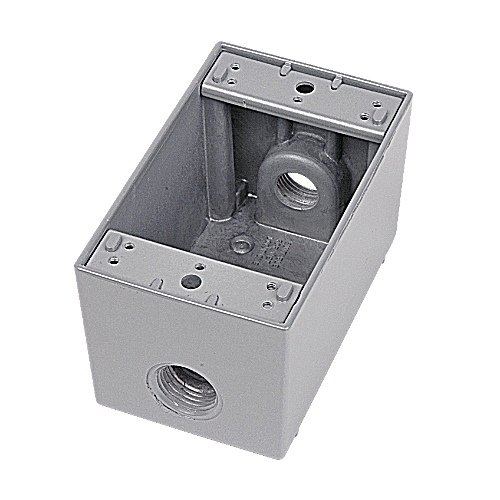

Single Gang Deep Universal Weatherproof Box, 24.8 Cubic Inches, 2-5/8 Inches Deep, Hub Size 1/2 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back
HESCO Part Number
REDIHD31
UPC
04226939327
Manufacturer Part Number
IHD3-1
Manufacturer
Thomas & Betts
Device Boxes, Covers & Accessories
MFG #IHD3-1
Product Description:
Single Gang Deep Universal Weatherproof Box, 24.8 Cubic Inches, 2-5/8 Inches Deep, Hub Size 1/2 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back
HESCO Part Number
REDIHD31
UPC
04226939327
Manufacturer Part Number
IHD3-1
Manufacturer
Thomas & Betts
$55.74Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Rain tight when used with appropriate Red Dot covers.
- UL
- Precision cast and machined surfaces permit safer wire pulling.
- Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
- Securely fastened mounting plates reduce costly call backs
- Convenient mounting lugs for a variety of mounting methods
- Clear UL and cubic content markings speed approval by inspectors
- Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
- Clean cover edges provide good gasket sealing.
- Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Junction box for branch conduits
Packaging
| Package Width | :Â Â | 5.5 |
| Inner Package | :Â Â | 1 |
| Package Length | :Â Â | 14.75 |
| Outer Package | :Â Â | 10 |
| T&B Weight Per UOM | :Â Â | 0.75 lbs. Each |
| Package Height | :Â Â | 6.25 |
| T&B Sold in UOM | :Â Â | Each |
Dimension Information | ||
| G (inches) | :Â Â | 3 1/4 |
| H (inches) | :Â Â | 1 7/8 |
| B (inches) | :Â Â | 2 13/16 |
| F (inches) | :Â Â | 3 1/2 |
| Hub Size (inches) | :Â Â | 1/2 |
| A (inches) | :Â Â | 4 9/16 |
| D (inches) | :Â Â | 5/8 |
| J (inches) | :Â Â | 1 1/2 |
| C (inches) | :Â Â | 2 5/8 |
| E (inches) | :Â Â | 3 13/16 |
General | ||
| Color | :Â Â | Silver |
| Volume (cu.in.) | :Â Â | 24.8 |
| Material | :Â Â | Die Cast Aluminum |
| Number of Gangs | :Â Â | One |
| Finish | :Â Â | Powder-Coated |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
- Rain tight when used with appropriate Red Dot covers.
- UL
- Precision cast and machined surfaces permit safer wire pulling.
- Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
- Securely fastened mounting plates reduce costly call backs
- Convenient mounting lugs for a variety of mounting methods
- Clear UL and cubic content markings speed approval by inspectors
- Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
- Clean cover edges provide good gasket sealing.
- Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Junction box for branch conduits
Packaging
Package Width :Â Â 5.5 Inner Package :Â Â 1 Package Length :Â Â 14.75 Outer Package :Â Â 10 T&B Weight Per UOM :Â Â 0.75 lbs. Each Package Height :Â Â 6.25 T&B Sold in UOM :Â Â Each Dimension Information
G (inches) :Â Â 3 1/4 H (inches) :Â Â 1 7/8 B (inches) :Â Â 2 13/16 F (inches) :Â Â 3 1/2 Hub Size (inches) :Â Â 1/2 A (inches) :Â Â 4 9/16 D (inches) :Â Â 5/8 J (inches) :Â Â 1 1/2 C (inches) :Â Â 2 5/8 E (inches) :Â Â 3 13/16 General
Color :Â Â Silver Volume (cu.in.) :Â Â 24.8 Material :Â Â Die Cast Aluminum Number of Gangs :Â Â One Finish :Â Â Powder-Coated Certifications
RoHS Compliance :Â Â Yes - Application Support
