Ground Clamp
MFG #JP1
$96.33Â /Â E
EACH
EACH
Product Description:

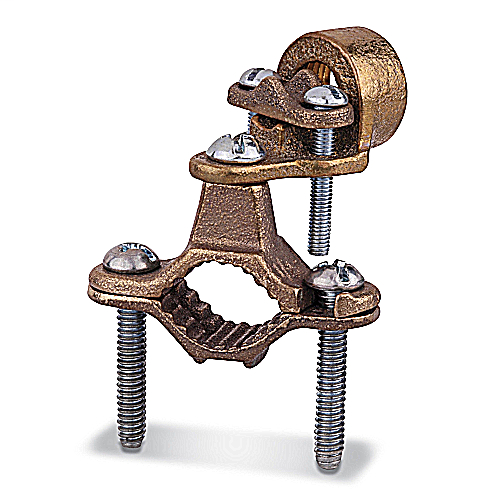

Cast Bronze Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1
HESCO Part Number
BLBJP1
UPC
78378680124
Manufacturer Part Number
JP1
Manufacturer
Thomas & Betts
Ground Clamp
MFG #JP1
Product Description:
Cast Bronze Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1
HESCO Part Number
BLBJP1
UPC
78378680124
Manufacturer Part Number
JP1
Manufacturer
Thomas & Betts
$96.33Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Hub swings 360 degrees for easy alignment. Heavy brass washer protects clamped grounding conductor.
- Furnished with zinc-plated screws. Continuity from rigid conduit system to ground provided by cast bronze threaded conduit hub.
Packaging
| Outer Quantity | :Â Â | 50 |
| Outer Dimensions (inches) | :Â Â | 10.7x9.8x7.7 |
| Weight Uom | :Â Â | 55 lbs. per 100 |
North American Specifications (UNSPSC) | ||
| UNSPSC | :Â Â | 39121613 Grounding devices or assemblies |
| IGCC | :Â Â | 4909 Grounding devices or assemblies |
| Brand Name | :Â Â | Blackburn |
| Type | :Â Â | Ground Clamp |
| Special Features | :Â Â | Hub swings 360 degrees for easy alignment. Heavy brass washer protects clamped grounding conductor. |
European Specifications (ETIM) | ||
| ETIM | :Â Â | EC000511 Tube earthing clamp for lightning protection |
| Material | :Â Â | Copper |
- Hub swings 360 degrees for easy alignment. Heavy brass washer protects clamped grounding conductor.
- Furnished with zinc-plated screws. Continuity from rigid conduit system to ground provided by cast bronze threaded conduit hub.
Packaging
Outer Quantity :Â Â 50 Outer Dimensions (inches) :Â Â 10.7x9.8x7.7 Weight Uom :Â Â 55 lbs. per 100 North American Specifications (UNSPSC)
UNSPSC :Â Â 39121613 Grounding devices or assemblies IGCC :Â Â 4909 Grounding devices or assemblies Brand Name :Â Â Blackburn Type :Â Â Ground Clamp Special Features :Â Â Hub swings 360 degrees for easy alignment. Heavy brass washer protects clamped grounding conductor. European Specifications (ETIM)
ETIM :Â Â EC000511 Tube earthing clamp for lightning protection Material :Â Â Copper - Downloads
Technical Drawing / Spec Sheet USSpec SheetTechnical Drawing / Spec Sheet Canada
