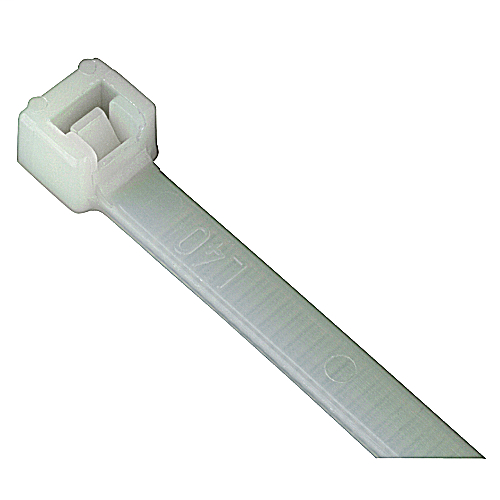

T&B L-14-120-9-C 14" 1-PC NYLON TIE
MFG #L-14-120-9-C
$0.44 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 362.81mm (14.284 Inches), Width of 7.62mm (0.30 Inches), Thickness of 1.91mm (0.075 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
HESCO Part Number
TBL141209C
UPC
72849491170
Manufacturer Part Number
L-14-120-9-C
Manufacturer
Thomas & Betts
T&B L-14-120-9-C 14" 1-PC NYLON TIE
MFG #L-14-120-9-C
Product Description:
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 362.81mm (14.284 Inches), Width of 7.62mm (0.30 Inches), Thickness of 1.91mm (0.075 Inches), Tensile Strength Rating of 534 Newtons (120 Pounds)
HESCO Part Number
TBL141209C
UPC
72849491170
Manufacturer Part Number
L-14-120-9-C
Manufacturer
Thomas & Betts
$0.44 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Specifications
- Resources
Dimension Information
| Min. Wire Bundle Diameter (inches) | : | 3/16 |
| Max. Wire Bundle Diameter (inches) | : | 4 |
| Length (inches) | : | 14.2 |
| Width (inches) | : | 0.300 |
| Nominal Length (inches) | : | 14 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| T&B Weight Per UOM | : | 0.5 lbs. per 100 |
| T&B Sold in UOM | : | Each |
| Package Type | : | Standard |
| Package Width | : | 12.8 |
| Inner Package | : | 100 |
| Order Multiple | : | 100 |
| Package Length | : | 18.1 |
| Package Height | : | 13.6 |
| Outer Package | : | 3000 |
Tooling | ||
| Application Tools | : | ERG120 |
General | ||
| Material | : | Nylon 6.6 |
| Color | : | Natural |
Specifications | ||
| Military Standard Part No. | : | MS-3367-3-9 |
| Temperature Rating | : | -40°F to 185°F |
| Flammability Rating | : | UL 94 V-2 |
Dimension Information
Min. Wire Bundle Diameter (inches) : 3/16 Max. Wire Bundle Diameter (inches) : 4 Length (inches) : 14.2 Width (inches) : 0.300 Nominal Length (inches) : 14 Certifications
RoHS Compliance : Yes Packaging
T&B Weight Per UOM : 0.5 lbs. per 100 T&B Sold in UOM : Each Package Type : Standard Package Width : 12.8 Inner Package : 100 Order Multiple : 100 Package Length : 18.1 Package Height : 13.6 Outer Package : 3000 Tooling
Application Tools : ERG120 General
Material : Nylon 6.6 Color : Natural Specifications
Military Standard Part No. : MS-3367-3-9 Temperature Rating : -40°F to 185°F Flammability Rating : UL 94 V-2 - Certifications
RoHS Compliance
