Intermediate
MFG #L-14-40-9-D
$0.51 / E
EACH
EACH
Product Description:

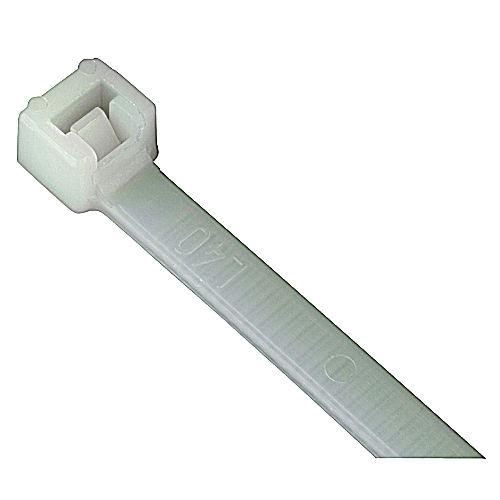

Intermediate Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 362.9mm (14.287 Inches), Width of 3.56mm (0.14 Inches), Thickness of 1.13mm (0.045 Inches), Tensile Strength Rating of 178 Newtons (40 Pounds), Bulk Pack
HESCO Part Number
TBL14409D
UPC
72849493316
Manufacturer Part Number
L-14-40-9-D
Manufacturer
Thomas & Betts
Intermediate
MFG #L-14-40-9-D
Product Description:
Intermediate Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 362.9mm (14.287 Inches), Width of 3.56mm (0.14 Inches), Thickness of 1.13mm (0.045 Inches), Tensile Strength Rating of 178 Newtons (40 Pounds), Bulk Pack
HESCO Part Number
TBL14409D
UPC
72849493316
Manufacturer Part Number
L-14-40-9-D
Manufacturer
Thomas & Betts
$0.51 / E
EACH
EACH
- Specifications
- Resources
Dimension Information
| Nominal Length (inches) | : | 14 |
| Min. Wire Bundle Diameter (inches) | : | 1/16 |
| Max. Wire Bundle Diameter (inches) | : | 4 |
| Length (inches) | : | 14.5 |
| Width (inches) | : | 0.146 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Height | : | 10.75 |
| Order Multiple | : | 5000 |
| T&B Weight Per UOM | : | 4.38 lbs. per 1000 |
| Package Width | : | 13.75 |
| T&B Sold in UOM | : | Each |
| Outer Package | : | 5000 |
| Inner Package | : | 500 |
| Package Type | : | Bulk |
| Package Length | : | 16.5 |
Tooling | ||
| Application Tools | : | ERG50, QC-100, L-200, L-400-C |
General | ||
| Color | : | Natural |
| Material | : | Nylon 6.6 |
Specifications | ||
| Flammability Rating | : | UL 94 V-2 |
| Temperature Rating | : | -40°F to 185°F |
Dimension Information
Nominal Length (inches) : 14 Min. Wire Bundle Diameter (inches) : 1/16 Max. Wire Bundle Diameter (inches) : 4 Length (inches) : 14.5 Width (inches) : 0.146 Certifications
RoHS Compliance : Yes Packaging
Package Height : 10.75 Order Multiple : 5000 T&B Weight Per UOM : 4.38 lbs. per 1000 Package Width : 13.75 T&B Sold in UOM : Each Outer Package : 5000 Inner Package : 500 Package Type : Bulk Package Length : 16.5 Tooling
Application Tools : ERG50, QC-100, L-200, L-400-C General
Color : Natural Material : Nylon 6.6 Specifications
Flammability Rating : UL 94 V-2 Temperature Rating : -40°F to 185°F - Application Support
