Minature
MFG #L-8-18-0-M
$0.20 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

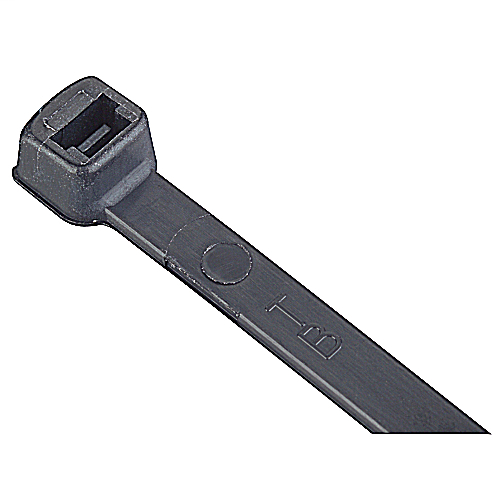

Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 198.70mm (7.823 Inches), Width of 2.41mm (0.095 Inches), Thickness of 1.13mm (0.045 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBL8180M
UPC
72849491770
Manufacturer Part Number
L-8-18-0-M
Manufacturer
Thomas & Betts
Minature
MFG #L-8-18-0-M
Product Description:
Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 198.70mm (7.823 Inches), Width of 2.41mm (0.095 Inches), Thickness of 1.13mm (0.045 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBL8180M
UPC
72849491770
Manufacturer Part Number
L-8-18-0-M
Manufacturer
Thomas & Betts
$0.20 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Specifications
- Resources
Dimension Information
| Min. Wire Bundle Diameter (inches) | : | 1/16 |
| Width (inches) | : | 0.100 |
| Max. Wire Bundle Diameter (inches) | : | 2 |
| Nominal Length (inches) | : | 8 |
| Length (inches) | : | 8.0 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Height | : | 13.8 |
| T&B Weight Per UOM | : | 1.25 lbs. per 1000 |
| Package Width | : | 12.8 |
| Package Type | : | Bulk |
| Inner Package | : | 1000 |
| Order Multiple | : | 1000 |
| T&B Sold in UOM | : | Each |
| Package Length | : | 17.4 |
| Outer Package | : | 20000 |
Tooling | ||
| Application Tools | : | ERG50, QC-100, L-200, L-400-C |
General | ||
| Material | : | Nylon 6.6 Weather Resistant |
| Color | : | Black |
Specifications | ||
| Flammability Rating | : | UL 94 V-2 |
| Temperature Rating | : | -40°F to 185°F |
Dimension Information
Min. Wire Bundle Diameter (inches) : 1/16 Width (inches) : 0.100 Max. Wire Bundle Diameter (inches) : 2 Nominal Length (inches) : 8 Length (inches) : 8.0 Certifications
RoHS Compliance : Yes Packaging
Package Height : 13.8 T&B Weight Per UOM : 1.25 lbs. per 1000 Package Width : 12.8 Package Type : Bulk Inner Package : 1000 Order Multiple : 1000 T&B Sold in UOM : Each Package Length : 17.4 Outer Package : 20000 Tooling
Application Tools : ERG50, QC-100, L-200, L-400-C General
Material : Nylon 6.6 Weather Resistant Color : Black Specifications
Flammability Rating : UL 94 V-2 Temperature Rating : -40°F to 185°F - Application Support
Material Selection GuideOverviewT&B Sales Drawings
CertificationsRoHS Compliance
