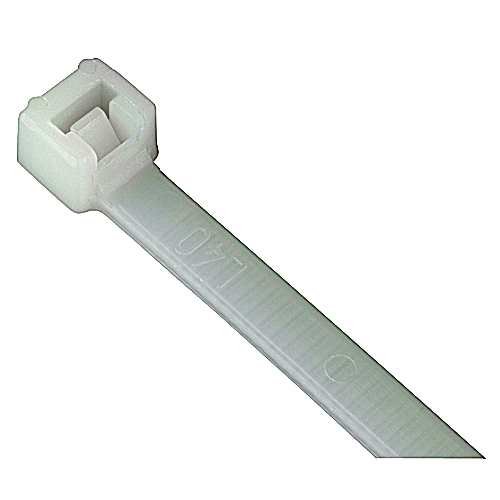

T&B L-8-18-9-M 8" NAT NYL CBL TIE
MFG #L-8-18-9-M
$0.16 / E
EACH
EACH
Product Description:
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 198.70mm (7.823 Inches), Width of 2.41mm (0.095 Inches), Thickness of 1.13mm (0.045 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBL8189M
UPC
72849491790
Manufacturer Part Number
L-8-18-9-M
Manufacturer
Thomas & Betts
T&B L-8-18-9-M 8" NAT NYL CBL TIE
MFG #L-8-18-9-M
Product Description:
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 198.70mm (7.823 Inches), Width of 2.41mm (0.095 Inches), Thickness of 1.13mm (0.045 Inches), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBL8189M
UPC
72849491790
Manufacturer Part Number
L-8-18-9-M
Manufacturer
Thomas & Betts
$0.16 / E
EACH
EACH
- Specifications
- Resources
Dimension Information
| Nominal Length (inches) | : | 8 |
| Length (inches) | : | 8.0 |
| Min. Wire Bundle Diameter (inches) | : | 1/16 |
| Max. Wire Bundle Diameter (inches) | : | 2 |
| Width (inches) | : | 0.100 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| T&B Sold in UOM | : | Each |
| Outer Package | : | 20000 |
| Package Type | : | Bulk |
| Package Length | : | 17.4 |
| Package Height | : | 13.8 |
| Inner Package | : | 1000 |
| Order Multiple | : | 1000 |
| Package Width | : | 12.9 |
| T&B Weight Per UOM | : | 1.25 lbs. per 1000 |
Tooling | ||
| Application Tools | : | ERG50, QC-100, L-200, L-400-C |
General | ||
| Material | : | Nylon 6.6 |
| Color | : | Natural |
Specifications | ||
| Temperature Rating | : | -40°F to 185°F |
| Flammability Rating | : | UL 94 V-2 |
Dimension Information
Nominal Length (inches) : 8 Length (inches) : 8.0 Min. Wire Bundle Diameter (inches) : 1/16 Max. Wire Bundle Diameter (inches) : 2 Width (inches) : 0.100 Certifications
RoHS Compliance : Yes Packaging
T&B Sold in UOM : Each Outer Package : 20000 Package Type : Bulk Package Length : 17.4 Package Height : 13.8 Inner Package : 1000 Order Multiple : 1000 Package Width : 12.9 T&B Weight Per UOM : 1.25 lbs. per 1000 Tooling
Application Tools : ERG50, QC-100, L-200, L-400-C General
Material : Nylon 6.6 Color : Natural Specifications
Temperature Rating : -40°F to 185°F Flammability Rating : UL 94 V-2 - Application Support
