Motor Lead Disconnect
MFG #M2D1614M-0
$59.33Â /Â E
EACH
EACH
Product Description:

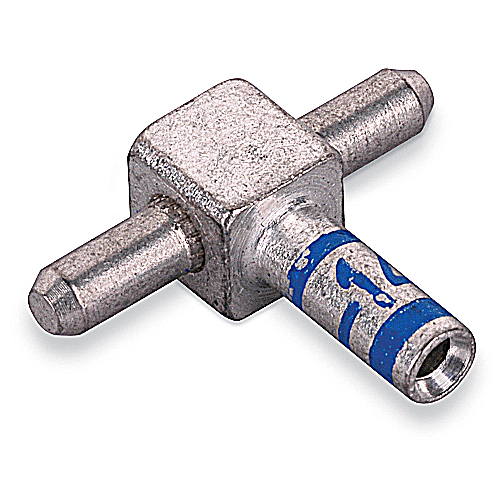

KUBE Male (Two Load) Copper Motor Pigtail Disconnect, Wire Size 16-14 AWG, Body Size 0, Die Color Blue
HESCO Part Number
TBM2D1614M0
UPC
78621074958
Manufacturer Part Number
M2D1614M-0
Manufacturer
Thomas & Betts
Motor Lead Disconnect
MFG #M2D1614M-0
Product Description:
KUBE Male (Two Load) Copper Motor Pigtail Disconnect, Wire Size 16-14 AWG, Body Size 0, Die Color Blue
HESCO Part Number
TBM2D1614M0
UPC
78621074958
Manufacturer Part Number
M2D1614M-0
Manufacturer
Thomas & Betts
$59.33Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.
- Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.
- #N/A
- Application Tools: WT112M, WT111M, WT2000, ERG4002
North American Specifications (UNSPSC)
| UNSPSC | :Â Â | 39121447 Wire terminal disconnect |
| IGCC | :Â Â | 4667 Wire terminal disconnect |
| Brand Name | :Â Â | Color-Keyed |
| Type | :Â Â | Motor Lead Disconnect |
| Special Features | :Â Â | Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. |
| Standard | :Â Â | UL E9809 |
| Voltage Rating | :Â Â | 600V |
| Material | :Â Â | Copper |
| Finish | :Â Â | Tin-Plated |
| Color | :Â Â | Blue |
Packaging | ||
| Inner Quantity | :Â Â | 20 |
| Inner Dimensions (inches) | :Â Â | 2.1x1.2x2.9 |
| Outer Quantity | :Â Â | 200 |
| Outer Dimensions (inches) | :Â Â | 6x4.5x3 |
| Weight Uom | :Â Â | 9.38 lbs. per 1000 |
- Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.
- Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.
- #N/A
- Application Tools: WT112M, WT111M, WT2000, ERG4002
North American Specifications (UNSPSC)
UNSPSC :Â Â 39121447 Wire terminal disconnect IGCC :Â Â 4667 Wire terminal disconnect Brand Name :Â Â Color-Keyed Type :Â Â Motor Lead Disconnect Special Features :Â Â Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot. Standard :Â Â UL E9809 Voltage Rating :Â Â 600V Material :Â Â Copper Finish :Â Â Tin-Plated Color :Â Â Blue Packaging
Inner Quantity :Â Â 20 Inner Dimensions (inches) :Â Â 2.1x1.2x2.9 Outer Quantity :Â Â 200 Outer Dimensions (inches) :Â Â 6x4.5x3 Weight Uom :Â Â 9.38 lbs. per 1000 - Downloads
